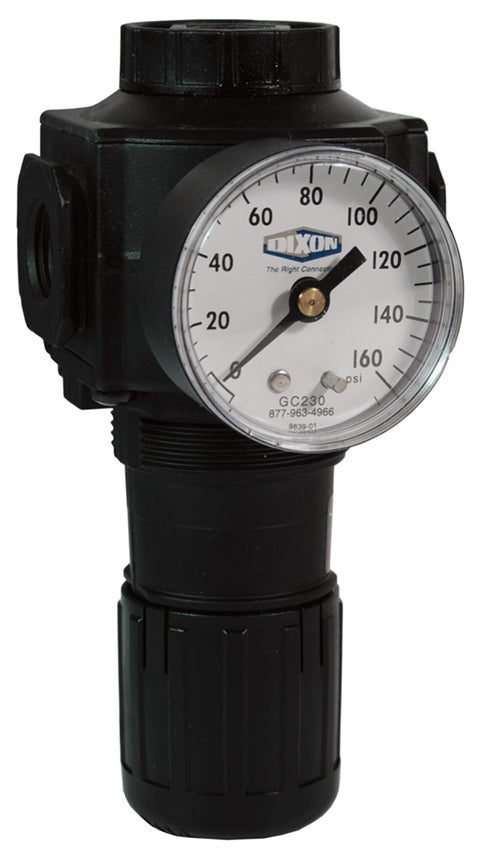

R74G-3RG by Dixon Valve | R74G Series 1 | Standard Regulator | 3/8" Port Size | 208 SCFM | with Gauge | 5-150 PSI Pressure Range

R74G-3RG by Dixon Valve | R74G Series 1 | Standard Regulator | 3/8" Port Size | 208 SCFM | with Gauge | 5-150 PSI Pressure Range

Save $9.46 Save $9.46
$137.79
$137.79 - $137.79
$137.79
$128.33
$128.33 - $128.33
$128.33

Dixon Valve
R74G Series 1 | Standard Regulator

Pressure range: 5-150 PSI

In-line or modular installation.

For air service only.
Specifications for Variant SKU: R74G-3RG Dixon
Series: R74G Series 1
Features:
  • In-line or modular installation.
  • Relieving type.
  • Two full flow 1/4" NPT gauge ports.
  • RG models supplied with GC230 gauge.
Specifications:
  • Pressure range: 5-150 PSI.
  • Inlet pressure: 300 PSI.
  • Maximum temperature: 175°F (80°C).
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Without Gauge
Part Number 		Port Size Flow (SCFM)
R74G-3RG R74G-3R 3/8" 208 SCFM
R74G-4RG R74G-4R 1/2" 220 SCFM
R74G-6RG R74G-6R 3/4" 220 SCFM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
