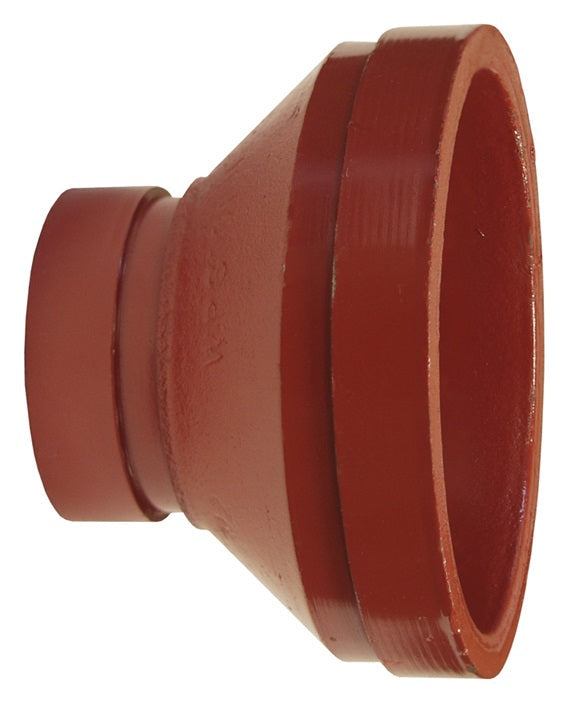

RAGG6030 by Dixon Valve | Series-RA | Reducing Flange Adapter | 6" Flange End x 3" Flange End | Ductile Iron

RAGG6030 by Dixon Valve | Series-RA | Reducing Flange Adapter | 6" Flange End x 3" Flange End | Ductile Iron

Save $23.74 Save $23.74
$59.35
$59.35 - $59.35
$59.35
$35.61
$35.61 - $35.61
$35.61

Dixon Valve
Reducing Flange Adapter | Series-RA
Specifications for Variant SKU: RAGG6030 Dixon
Series: Series-RA
Shape (Orientation): Straight
Ends Configuration: 6in Grooved End, 3in Grooved End
Material(s): Ductile Iron
Comparable to:
  • Victaulic's #50
  • Grinnell's #7072
Material:
  • Ductile iron body with rust inhibiting paint.
Approvals:
  • Underwriters Listed
  • Factory Mutual approved
Ductile Iron
Part Number		 Nominal
Size		 Nominal
Size		 Dimensions
E to E
RAGG20150 2" 1-1/2" 2.5"
RAGG25020 2-1/2" 2" 2.5"
RAGG3020 3" 2" 2.5"
RAGG30250 3" 2-1/2" 2.5"
RAGG4020 4" 2" 3.0"
RAGG40250 4" 2-1/2" 3.0"
RAGG4030 4" 3" 3.0"
RAGG5040 5" 4" 3.5"
RAGG6020 6" 2" 4.0"
RAGG60250 6" 2-1/2" 4.0"
RAGG6030 6" 3" 4.0"
RAGG6040 6" 4" 4.0"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
