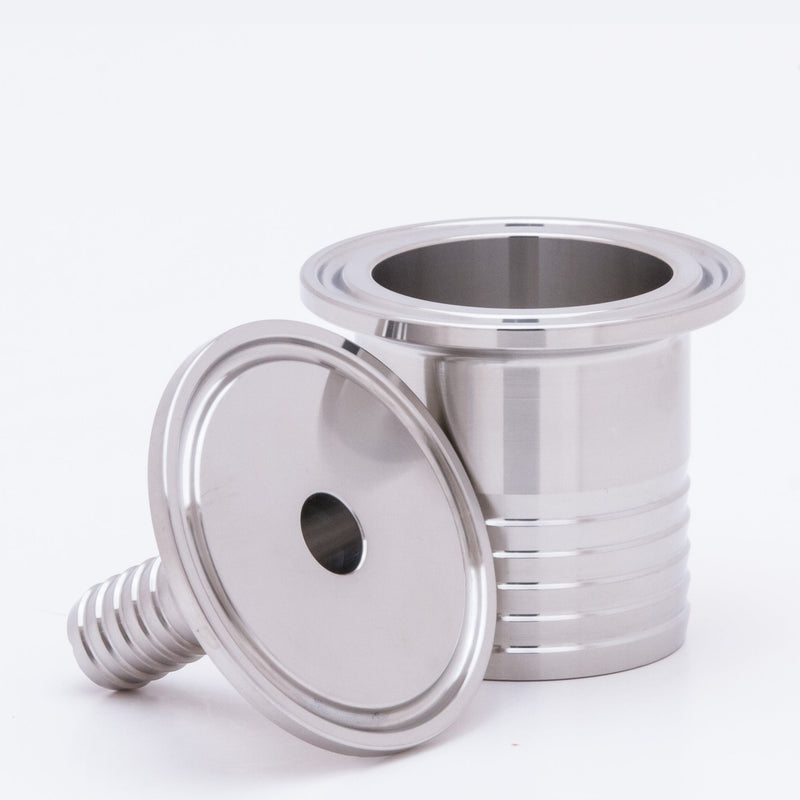

RATC-6X2 316 by Campbell Fittings | 3A Fittings & Adapters | Rubber Hose Adapter | 1-1/2" Tri-Clamp x 1/2" Hose Shank | Straight | 316 Stainless Steel

RATC-6X2 316 by Campbell Fittings | 3A Fittings & Adapters | Rubber Hose Adapter | 1-1/2" Tri-Clamp x 1/2" Hose Shank | Straight | 316 Stainless Steel

Save $10.07 Save $10.07
$33.24
$33.24 - $33.24
$33.24
$23.17
$23.17 - $23.17
$23.17

by Campbell
3A Fittings & Adapters:3A Rubber Hose Adapter
Specifications for Variant SKU: RATC-6X2 316 Campbell Fittings
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Features and Benefits:
  • Campbell Crimpnology™ offers hose assembly systems for food grade hose applications.
  • Specially designed shank & ferrule lengths are matched for hose tube and cover protection.
  • Dedicated silicone bumper seat area on crimp hose fittings.
  • All products listed as 3A components are certified to meet 32 Ra minimum polish and all other 3A criteria under 3A RPSCQC.
  • Crimp specifications are provided for all hoses for proven performance (3A crimp process exception).
Part Number Hose Size
RATC-4X2 316 1" x 1/2"
RATC-4X3 316 1" x 3/4"
RATC-4 316 1" x 1"
RATC-6X2 316 1-1/2" x 1/2"
RATC-6X58 316 1-1/2" x 5/8"
RATC-6X3 316 1-1/2" x 3/4"
RATC-6X4 316 1-1/2" x 1"
RATC-6 316 1-1/2" x 1-1/2"
RATC-8X6 316 2" x 1-1/2"
RATC-8 316 2" x 2"
RATC-10 316 2-1/2" x 2-1/2"
RATC-12 316 3" x 3"
RATC-16 316 4" x 4"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
