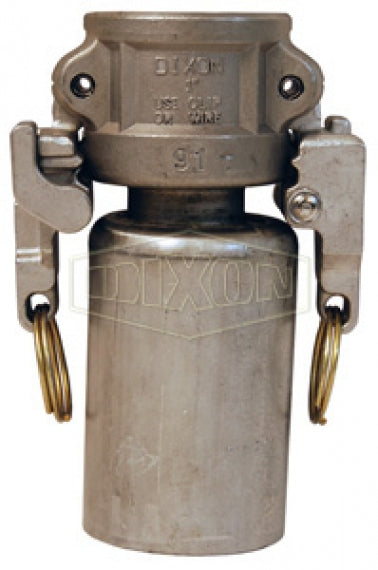

RC075EZ-70 by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 3/4" Size | Hose OD Range: from 1-6/64" to 1-22/64" | with Swaged Ferrule | 316 Stainless Steel

RC075EZ-70 by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 3/4" Size | Hose OD Range: from 1-6/64" to 1-22/64" | with Swaged Ferrule | 316 Stainless Steel

Save $59.67 Save $59.67
$149.18
$149.18 - $149.18
$149.18
$89.51
$89.51 - $89.51
$89.51

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank | with Swaged Ferrule

Developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes.
Specifications for Variant SKU: RC075EZ-70 Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Provides a permanently attached cam and groove fitting when superior coupling retention is required.
  • In testing tank transport hoses from a wide variety of manufacturers, the swaged Boss-Lock fitting proved itself to be the clear winner in overall performance.
Construction:
  • Seal: Nitrile Rubber
Safety Notes:
  • Special equipment is required for installation.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Contact Dixon for swage recommendations.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Hose OD Range Max. Operating Pressure
From To
RC075EZ-70 3/4" 1-6/64" 1-22/64" 250 PSI
RC100EZ-20 1" 1-29/64" 1-35/64" 250 PSI
RC100EZ-70 1" 1-36/64" 1-44/64" -
