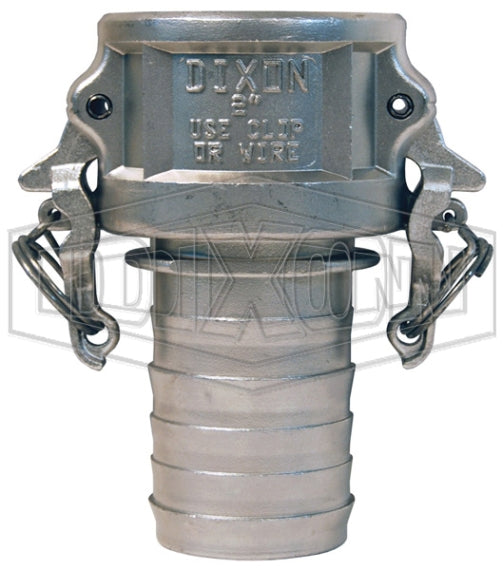

RC200BLNO by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Notched Hose Shank | 316 Stainless Steel

RC200BLNO by Dixon Valve | Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Notched Hose Shank | 316 Stainless Steel

Save $5.70 Save $5.70
$85.69
$85.69 - $85.69
$85.69
$79.99
$79.99 - $79.99
$79.99

Dixon Valve
Boss-Lock Cam & Groove Coupler | Type C | Coupler x Notched Hose Shank

Designed for use with liquids.

The largest advantage of the notched design is that the coupling can be removed from a damaged hose by cutting away the ferrule, without necessarily damaging the fitting.

After inspection of the fitting to determine its suitability for reuse, it can be reinstalled into another hose by using a new ferrule.
Specifications for Variant SKU: RC200BLNO Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • System allows you to better manage your inventories, you can stock one coupling and two ferrules, and cover the same hose range with less inventory, you must purchase a fitting and the matching ferrule to create an assembly.
  • Use with Notched Ferrules.
Construction:
  • Nitrile Rubber gasket
  • Boss-Lock cam arms
  • Supplied with pull-ring safety clips
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard Nitrile Rubber Seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • You must purchase a fitting and the matching ferrule to create an assembly.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Max. Operating Pressure
RC150BLNO 1-1/2" 250 PSI
RC200BLNO 2" 250 PSI
RC300BLNO 3" 125 PSI
RC400BLNO 4" 100 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
