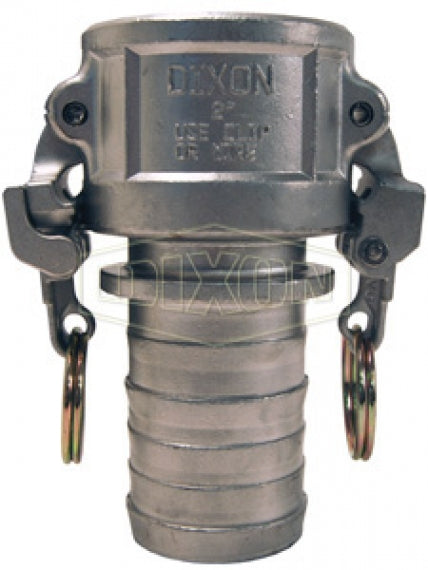

RC200CEZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Collared Hose Shank | 316 Stainless Steel

RC200CEZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Collared Hose Shank | 316 Stainless Steel

Save $68.85 Save $68.85
$172.12
$172.12 - $172.12
$172.12
$103.27
$103.27 - $103.27
$103.27

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type C | Coupler x Collared Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: RC200CEZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Design provides greater resistance to end pull than conventional band clamps and is intended for use with Strap-Grip saddles.
    • Saddles are sold in pairs and designed for use with 3/4" or 5/8" wide band clamps.
    • Bands must be purchased separately.
  • Band clamps should first be applied to the O.D. to seal the hose, then Strap-Grip saddles should be banded over the initial clamp to anchor the fitting in the hose.
Construction:
  • Nitrile Rubber gasket
  • Boss-Lock cam arms
  • Supplied with pull-ring safety clips
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action.
  • The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Max. Operating Pressure
RC100CEZ 1" 250 PSI
RC150CEZ 1-1/2" 250 PSI
RC200CEZ 2" 250 PSI
