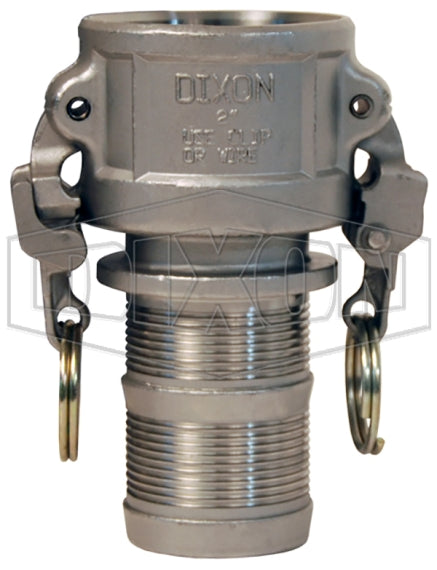

RC200EZPF by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank | 316 Stainless Steel with Phono Finish

RC200EZPF by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank | 316 Stainless Steel with Phono Finish

Save $88.98 Save $88.98
$222.45
$222.45 - $222.45
$222.45
$133.47
$133.47 - $133.47
$133.47

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank | with Phono Finish

The shank design on these fittings was developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps.
Specifications for Variant SKU: RC200EZPF Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Phono Finish
Features:
  • In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock-PF fitting showed significant improvement in hose coupling retention over the conventional cam and groove shank design. Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm. Rotating action helps keep the locking device free of debris. Designed to protect critical parts from impact and to withstand rugged use.
Construction:
  • Nitrile Rubber gasket
Safety Notes:
  • For best results we recommend the use of 3/4" wide band clamps.
  • If the rotating lever is not flush with the handle, it is not properly engaged.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service! Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
with Phono Finish
Part Number		 Size Max. Operating Pressure
RC200EZPF 2" 250 PSI
RC300EZPF 3" 125 PSI
