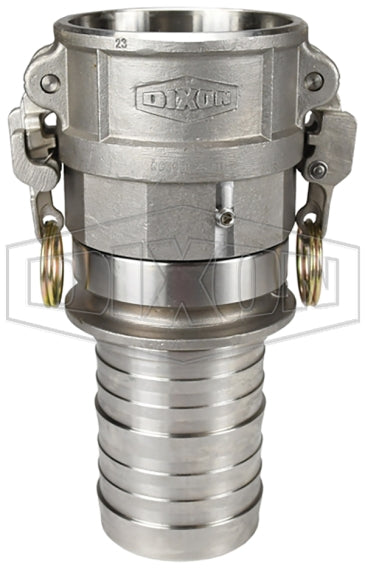

RC200EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank | 316 Stainless Steel

Save $141.99 Save $141.99
Original price $354.98
Original price $354.98 - Original price $354.98
Original price $354.98
Current price $212.99
$212.99 - $212.99
Current price $212.99

Dixon Valve
Swivel Coupling Cam & Groove | Type C Coupler | Coupler x Hose Shank

Live swivel is capable of 360-degree rotation under pressure.


Specifications for Variant SKU: RC200EZSWIV Dixon
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Features:
  • Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications.
  • Couplers inculde EZ Boss-Lock cam arms.
  • Gasket: nitrile rubber.
Note:
  • Hose shanks are suitable for use with King Crimp sleeves and ferrules.
356T6 Aluminum
Part Number
316 Stainless Steel
Part Number
Size Maximum Operating Pressure
AC200EZSWIV RC200EZSWIV 2" 250 PSI
AC300EZSWIV RC300EZSWIV 3" 125 PSI
150 PSI with King Crimp ferrule system
AC400EZSWIV RC400EZSWIV 4" 100 PSI
150 PSI with King Crimp ferrule system
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
