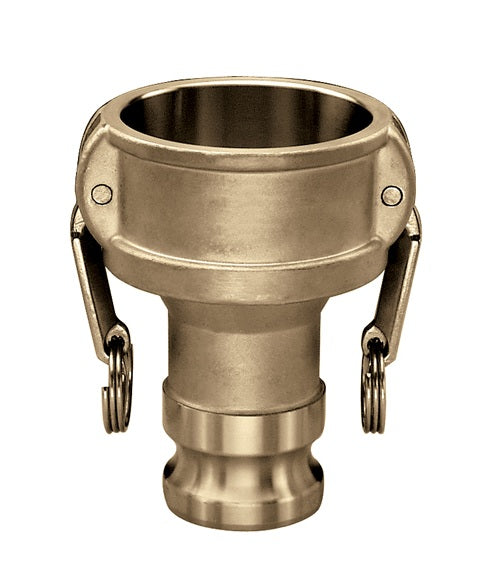

RDA-B3020 by Kuriyama | RDA-B Series | Part DA | Cam & Groove Adapter | 3" Coupler x 2" Adapter | Brass

Save $27.34

$153.98

$153.98 - $153.98

$153.98

$126.64

$126.64 - $126.64

$126.64

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part B - Reducing Coupler x Adapter - Brass

Specifications for Variant SKU: RDA-B3020 Kuriyama
Series:	RDA-B Series
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Female Cam & Groove, 2in Male Cam & Groove
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.
Forged brass handles result in less wear on connecting parts.

What are the Materials?

ASTM brass alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.
Forged brass handles.
304 stainless steel handle pins and pull rings.
Buna-N gasket included.

Part Number	Female Coupler Size (in)	Male Adapter Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
RDA-B2030	2"	3"	150 PSI	B584 Grade C85700	2.86 lbs
RDA-B3020	3"	2"	150 PSI	B584 Grade C85700	6.12 lbs
RDA-B4020	4"	2"	150 PSI	B584 Grade C85700	7.07 lbs
RDA-B4030	4"	3"	150 PSI	B584 Grade C85700	9.42 lbs
