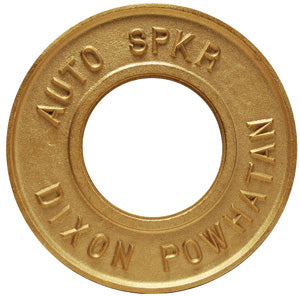

REP400AS Dixon Cast Brass Auto-Sprinkler Branded Round Identification Plate - 4" Pipe Size - 9-1/4" OD - 4-5/8" Hole Size

REP400AS Dixon Cast Brass Auto-Sprinkler Branded Round Identification Plate - 4" Pipe Size - 9-1/4" OD - 4-5/8" Hole Size

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Fire Fittings
Round Identification Plates - Cast Brass

Used to trim out and identify exposed fire department connections.
Specifications for Variant SKU: REP400AS Dixon
Dimensions
Size
OD
Hole Size
2-1/2"
7-5/8
3-1/4"
4"
9-1/4"
4-5/8"
6"
11-1/4"
6-3/4"
Part Number Branding Pipe Size Finish Weight
(Lbs.)
REP250AS Auto-Sprinkler 2-1/2" - 3.7200
REP250AS-P Auto-Sprinkler 2-1/2" Polished 4.5950
REP250AS-C Auto-Sprinkler 2-1/2" Polished Chrome Plated 3.2500
REP250HY Wall Hydrant 2-1/2" - 2.6900
REP250PT Pump Test 2-1/2" - 3.4000
REP250SP Standpipe 2-1/2" - 3.4600
REP250SP-P Standpipe 2-1/2" Polished 3.4600
REP250SP-C Standpipe 2-1/2" Polished Chrome Plated 3.4600
AREP400AS
(Aluminum)		 Auto-Sprinkler 4" - 0.7280
REP400AS Auto-Sprinkler 4" - 4.8500
REP400AS-P Auto-Sprinkler 4" Polished 4.2800
REP400AS-C Auto-Sprinkler 4" Polished Chrome Plated 2.9600
REP400HY Wall Hydrant 4" - 3.3800
REP400SP Standpipe 4" - 3.1600
REP400SP-P Standpipe 4" Polished 3.8120
REP400SP-C Standpipe 4" Polished Chrome Plated 3.1600
REP400AS/SP Auto-Sprinkler & Standpipe 4" - 3.2400
REP600AS Auto-Sprinkler 6" - 3.0000
REP600AS-P Auto-Sprinkler 6" Polished 3.0000
REP600AS-C Auto-Sprinkler 6" Polished Chrome Plated 3.0000
REP600SP Standpipe 6" - 4.1700
REP600SP-P Standpipe 6" Polished 4.1700
REP600SP-C Standpipe 6" Polished Chrome Plated 4.1700
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
