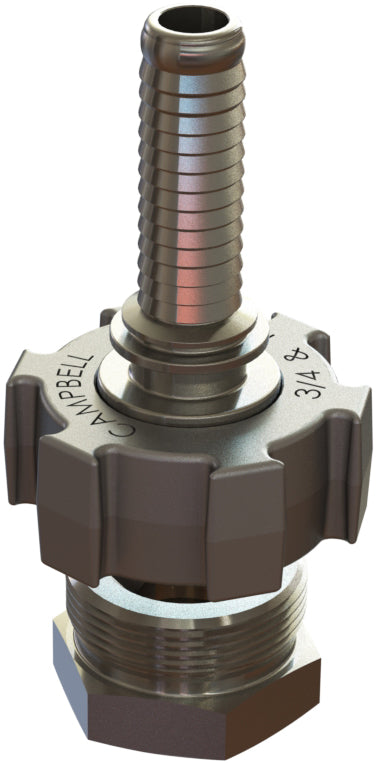

RHJF-4 by Campbell Fittings | Female Set w/ low profile nut | 1" Female NPT Thread x 1" Hose Barb | Straight | Steel/Ductile Iron

RHJF-4 by Campbell Fittings | Female Set w/ low profile nut | 1" Female NPT Thread x 1" Hose Barb | Straight | Steel/Ductile Iron

Save $32.25 Save $32.25
$80.63
$80.63 - $80.63
$80.63
$48.38
$48.38 - $48.38
$48.38

by Campbell
Heavy Duty VITON® Seal Air Hammer Couplings:VITON® Seal Female Set (with low profile nut)
Specifications for Variant SKU: RHJF-4 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Hose Barb
Material(s): Ductile Iron, Steel
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bolts.
Part Number Size
RHJF-3 3/4"
RHJF-4 1"
