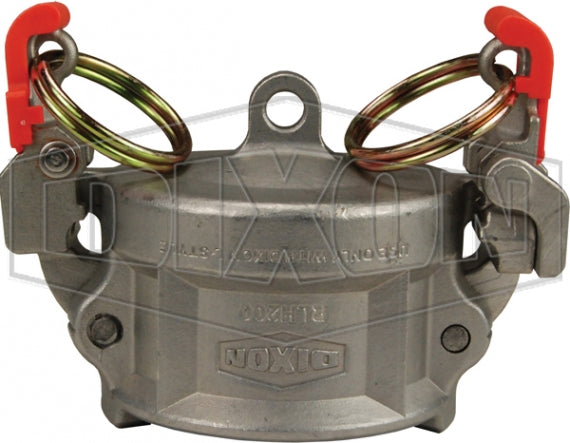

RLH300EZ by Dixon Valve | EZ Boss-Lock Vent-Lock® Safety Cam & Groove Dust Cap | Type H | 3" Size | 316 Stainless Steel

RLH300EZ by Dixon Valve | EZ Boss-Lock Vent-Lock® Safety Cam & Groove Dust Cap | Type H | 3" Size | 316 Stainless Steel

Save $112.69 Save $112.69
$281.73
$281.73 - $281.73
$281.73
$169.04
$169.04 - $169.04
$169.04

Dixon Valve
EZ Boss-Lock Vent-Lock® Safety Cam & Groove | Type H | Dust Cap

Transfer of fluids and solids, with a safer disconnection.
Specifications for Variant SKU: RLH300EZ Dixon
Brand: Vent-Lock, EZ Boss-Lock, King Crimp
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove
Material(s): 316 Stainless Steel
Features:
  • Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies.
  • Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids.
  • Does not interchange with standard cam & groove products; use only with Dixon L-style fittings.
  • Safety orange cam arms.
Specifications:
  • Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed.
    • 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI.
    • 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI.
    • 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size
RLH100EZ - 1"
RLH150EZ - 1-1/2"
RLH200EZ - 2"
RLH300EZ - 3"
- ALH400EZ 4"

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F (21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.
