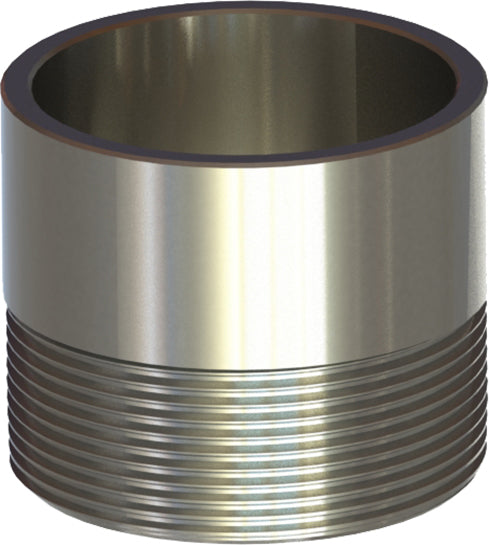

RN-16 by Campbell Fittings | Toe Nipple | 4" Male NPT Thread x 4" Length | Carbon Steel

RN-16 by Campbell Fittings | Toe Nipple | 4" Male NPT Thread x 4" Length | Carbon Steel

Save $60.61 Save $60.61
$151.52
$151.52 - $151.52
$151.52
$90.91
$90.91 - $90.91
$90.91

by Campbell
Toe Nipples and Reducing Nipples:RN Toe Nipple
Specifications for Variant SKU: RN-16 Campbell Fittings
Series: RN Series
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT
Material(s): Carbon Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number NPT x Length Size
RN-2S 1/2" x 1-1/2" 1/2" x 1-1/2"
RN-2 1/2" x 2" 1/2" x 2"
RN-3S 3/4" x 1-1/2" 3/4" x 1-1/2"
RN-3 3/4" x 2" 3/4" x 2"
RN-4 1" x 2" 1" x 2"
RN-5 1-1/4" x 2" 1-1/4" x 2"
RN-5L 1-1/4" x 2-1/2" 1-1/4" x 2-1/2"
RN-6 1-1/2" x 2" 1-1/2" x 2"
RN-6L 1-1/2" x 2-1/2" 1-1/2" x 2-1/2"
RN-6XL 1-1/2" x 3" 1-1/2" x 3"
RN-8 2" x 2" 2" x 2"
RN-8L 2" x 2-1/2" 2" x 2-1/2"
RN-8XL 2" x 3" 2" x 3"
RN-10S 2-1/2" x 2-1/2" 2-1/2" x 2-1/2"
RN-12 3" x 3" 3" x 3"
RN-12L 3" x 3-1/2" 3" x 3-1/2"
RN-12XL 3" x 4" 3" x 4"
RN-16 4" x 4" 4" x 4"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
