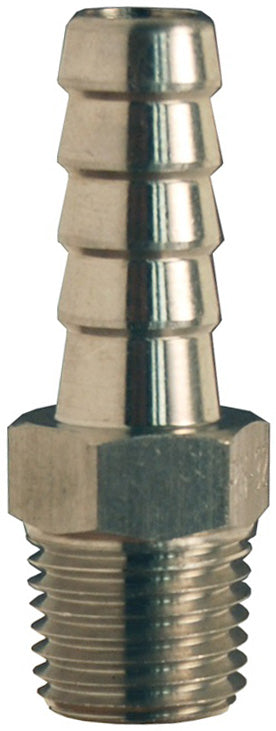

RN86 by Dixon Valve | Male Hose Barb Insert | 3/4" Male NPT x 1" Hose ID | 316 Stainless Steel

RN86 by Dixon Valve | Male Hose Barb Insert | 3/4" Male NPT x 1" Hose ID | 316 Stainless Steel

Save $24.90 Save $24.90
$62.25
$62.25 - $62.25
$62.25
$37.35
$37.35 - $37.35
$37.35

Dixon Valve
Male Hose Barb Insert | Male NPTF x Hose Barb
Specifications for Variant SKU: RN86 Dixon
Series: 102 Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 3/4in Male NPT
Material(s): 316 Stainless Steel
Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
  • NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Brass Lead-Free Brass
Part Number		 316 Stainless Steel*
(NPT THREADS)
Part Number		 Hose I.D. Male NPTF
(Stainless Steel Parts are NPT Thread)
Previous
Part Number		 Part Number
BN11 1020202C - RN11 1/8" 1/8"
BN122 1020204C - - 1/8" 1/4"
BN151 1020302C 1020302CLF RN151 3/16" 1/8"
BN152 1020304C - RN152 3/16" 1/4"
BN21 1020402C 1020402CLF RN21 1/4" 1/8"
BN22 1020404C 1020404CLF RN22 1/4" 1/4"
BN23 1020406C RN23 1/4" 3/8"
BN24 1020408C - - 1/4" 1/2"
BN251 1020502C - RN251 5/16" 1/8"
BN252 1020504C 1020504CLF RN252 5/16" 1/4"
BN253 1020506C - RN253 5/16" 3/8"
BN31 1020602C 1020602CLF RN31 3/8" 1/8"
BN32 1020604C 1020604CLF RN32 3/8" 1/4"
BN33 1020606C 1020606C RN33 3/8" 3/8"
BN34 1020608C 1020608CLF RN34 3/8" 1/2"
BN36 1020612C - 3/8" 3/4"
BN42 1020804C 1020804CLF RN42 1/2" 1/4"
BN43 1020806C 1020806CLF RN43 1/2" 3/8"
BN44 1020808C 1020808CLF RN44 1/2" 1/2"
BN46 1020812C - RN46 1/2" 3/4"
BN53 1021006C - RN53 5/8" 3/8"
BN54 1021008C 1021008CLF RN54 5/8" 1/2"
BN56 1021012C - RN56 5/8" 3/4"
- 1021206C - - 3/4" 3/8"
BN64 1021208C 1021208CLF RN64 3/4" 1/2"
BN66 1021212C 1021212CLF RN66 3/4" 3/4"
- 1021608C - - 1" 1/2"
BN86 1021612C - RN86 1" 3/4"
BN88 1021616C** - 1021616SS**,† 1" 1"
- 1021620C** - - 1" 1-1/4"
BN106 1022012C - - 1-1/4" 3/4"
BN108 1022016C** - - 1-1/4" 1"
- 1022416C** - - 1-1/2" 1"
- 1022420C** - - 1-1/2" 1-1/4"

* NPT thread
** Capped
† Part is 316SS cast
