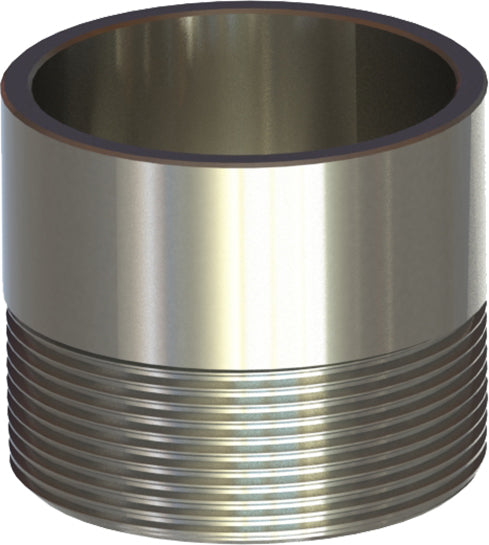

RNS-5 by Campbell Fittings | Toe Nipple | 1-1/4" Male NPT Thread x 2" Length | 304 Stainless Steel

RNS-5 by Campbell Fittings | Toe Nipple | 1-1/4" Male NPT Thread x 2" Length | 304 Stainless Steel

Save $8.07 Save $8.07
$20.18
$20.18 - $20.18
$20.18
$12.11
$12.11 - $12.11
$12.11

by Campbell
Toe Nipples and Reducing Nipples:RNS Toe Nipple
Specifications for Variant SKU: RNS-5 Campbell Fittings
Series: RNS Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPT
Material(s): 304 Stainless Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number NPT x Length Size
RNS-2S 1/2" x 1-1/2" 1/2" x 1-1/2"
RNS-2 1/2" x 2" 1/2" x 2"
RNS-3S 3/4" x 1-1/2" 3/4" x 1-1/2"
RNS-3 3/4" x 2" 3/4" x 2"
RNS-4 1" x 2" 1" x 2"
RNS-5 1-1/4" x 2" 1-1/4" x 2"
RNS-5L 1-1/4" x 2-1/2" 1-1/4" x 2-1/2"
RNS-6 1-1/2" x 2" 1-1/2" x 2"
RNS-6L 1-1/2" x 2-1/2" 1-1/2" x 2-1/2"
RNS-6XL 1-1/2" x 3" 1-1/2" x 3"
RNS-8 2" x 2" 2" x 2"
RNS-8L 2" x 2-1/2" 2" x 2-1/2"
RNS-8XL 2" x 3" 2" x 3"
RNS-10S 2-1/2" x 2-1/2" 2-1/2" x 2-1/2"
RNS-12 3" x 3" 3" x 3"
RNS-12L 3" x 3-1/2" 3" x 3-1/2"
RNS-12XL 3" x 4" 3" x 4"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
