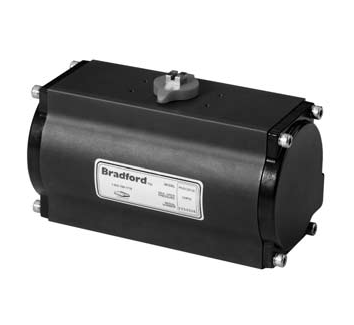

RP-BA-025-DA05 Dixon Valve RP-BA Series Double-Acting Aluminum Rack and Pinion Actuator - 250 Series - ISO5211 F05

RP-BA-025-DA05 Dixon Valve RP-BA Series Double-Acting Aluminum Rack and Pinion Actuator - 250 Series - ISO5211 F05

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
RP-BA Series Double-Acting Aluminum Rack and Pinion Actuator
Specifications for Variant SKU: RP-BA-025-DA05 Dixon
Features and Benefits:
  • Body: extruded hard anodized aluminum alloy provides wear and corrosion resistance and reduced friction.
  • Heavy duty springs: high tensile steel springs with retainer and guide for safe and easy assembly.
  • Pistons: die-cast aluminum alloy fitted with nylon bushing guides and Buna-N seals.
  • End caps: epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environments.
  • Pinion: Electroless nickel plated carbon steel for maximum corrosion and wear resistance.
  • Rotation adjustment: A full ±5° of travel adjustment in the open and closed positions, standard on all sizes.
  • Solenoid interface: International NAMUR solenoid mounting interface is standard on all units.
  • Indicator: A high visibility polyethylene indicator. Open/Close indication is standard on all models.
  • Tested to 1 million cycles
Specifications:
  • Twin rack & pinion design
  • Female double square output shaft
  • ISO 5211 bolt patterns
  • Piston and pinion lubrication: Shell Darina R2
  • Range of rotation adjustment: 80° to 100°
  • Operating media: dry or lubricated non-corrosive gas
  • Operating pressure: 40 to 120 PSI
  • Maximum pressure rating: 150 PSI
  • Temperature range: -4°F to 200°F
  • Size range: 40 in. lb. 16,500 in. lb.
Cycle Times:
  • Overall cycle time performance will vary greatly for each unit. Cycle times are dependant on air supply, valve torque, line pressure, temperature and media.
Dimensions:
Part Number Weight Volume ISO5211
Outboard Inboard
cm3 in3 cm3 in3
RP-BA-012-DA 2.24 lbs. 77 4.70 80 4.88 F04
RP-BA-025-DA 2.36 lbs. 139 8.48 170 10.37 F04
RP-BA-025-DA05 2.36 lbs. 139 8.48 170 10.37 F05
RP-BA-045-DA 5.00 lbs. 252 15.38 324 19.77 F05 / F07
RP-BA-101-DA 8.70 lbs. 495 30.21 708 43.2 F05 / F07
RP-BA-225-DA 17.25 lbs. 1163 70.97 1573 59.99 F07 / F10
RP-BA-365-DA 14.80 lbs. 2415 147.37 2673 163.12 F10 / F12
