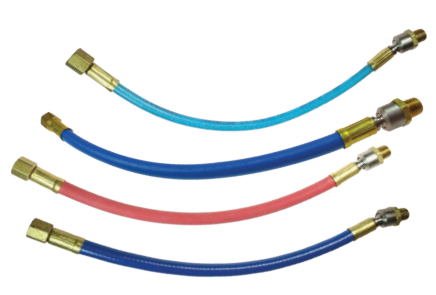

RP0524BS by Coilhose | Lead-In Hose | 5/16" Hose ID | 1/4" Female NPT Thread x 1/4" Male Ball Swivel | Blue | Neoprene | 24" Length

RP0524BS by Coilhose | Lead-In Hose | 5/16" Hose ID | 1/4" Female NPT Thread x 1/4" Male Ball Swivel | Blue | Neoprene | 24" Length

Save $2.66 Save $2.66
$23.96
$23.96 - $23.96
$23.96
$21.30
$21.30 - $21.30
$21.30
Coilhose Pneumatics - Straight Hose - Ball Swivel Lead-In Hose
Specifications for Variant SKU: RP0524BS Coilhose
Hose Color(s): Blue
Material(s): Neoprene
Special Properties: Swivel
Overview:
  • A Ball Swivel Lead-In Hose helps eliminate stress and wear points caused by bending and pulling. Additionally, when used between the air tool and coupler, a lead-in hose will extend the life of the coupler by acting as a shock absorber and protecting the coupler against tool vibration. It also provides an easier and wider range of motion, reducing worker fatigue while increasing productivity. The end result is a safer and more economical hose assembly. Fittings are male ball swivel and female rigid.
  • FLEXEEL: Flexeel Lead-Ins are composed of lightweight, reinforced polyurethane hose. These lead-ins are designed to isolate high-vibration tools such as impact guns and air hammers from couplers. The reinforced polyurethane composition withstands oils, abrasion, and kinking.
  • Neoprene: Neoprene Lead-Ins are constructed of oil-resistant neoprene rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life.
  • Red Rubber: Rubber Lead-Ins are constructed of EPDM rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life.
  • Thermoplastic: Thermoplastic Lead-Ins are composed of reinforced PVC. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life. Thermoplastic PVC provides increased working pressure and oil resistance.
Features:
  • Shock absorbing whip hose.
  • Ball swivel Fitting Increases User's Range of Motion & Comfort
  • Maximum working pressure:
    • FLEXEEL - 200 PSI
    • Neoprene - 300 PSI
    • Red Rubber - 250 PSI
    • Thermoplastic - 300 PSI
  • Composed of Thermoplastic Hose
  • Made in USA

Part No.
FLEXEEL		 Part No.
Neoprene		 Part No.
Red Rubber		 Part No.
Thermoplastic		 Hose ID Fitting Hose Length
FP0412BS RP0412BS HP0412BS VP0412BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP0418BS RP0418BS HP0418BS VP0418BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP0424BS RP0424BS HP0424BS VP0424BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP0430BS RP0430BS HP0430BS VP0430BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP0436BS RP0436BS HP0436BS VP0436BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP0460BS RP0460BS HP0460BS VP0460BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 60"

FP0512BS RP0512BS HP0512BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP0518BS RP0518BS HP0518BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP0524BS RP0524BS HP0524BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP0530BS RP0530BS HP0530BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP0536BS RP0536BS HP0536BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP0560BS RP0560BS - - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 60"

FP06124BS RP06124BS HP06124BS VP06124BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP06184BS RP06184BS HP06184BS VP06184BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP06244BS RP06244BS HP06244BS VP06244BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP06304BS RP06304BS HP06304BS VP06304BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP06364BS RP06364BS HP06364BS VP06364BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP06604BS RP06604BS HP06604BS VP06604BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 60"
FP06724BS RP06724BS HP06724BS VP06724BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 72"
