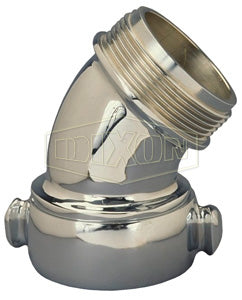

RSE45250F-C Dixon Polished Chrome Plated Brass 45 deg. Angle and Suction Elbow - 2-1/2" Male NST(NH) x 2-1/2" Female NST(NH)

Name: RSE45250F-C Dixon Polished Chrome Plated Brass 45 deg. Angle and Suction Elbow - 2-1/2" Male NST(NH) x 2-1/2" Female NST(NH)
Brand: Dixon
SKU: RSE45250F-C Dixon
Price: 213.83 USD
Availability: InStock

Save $142.55

$356.38

$356.38 - $356.38

$356.38

$213.83

$213.83 - $213.83

$213.83

Dixon Fire Fittings
Angle and Suction Elbows - Brass

For use on pump discharge valves, or suction inlet to minimize hose kinking.

Quantity

Specifications for Variant SKU: RSE45250F-C Dixon
Shape (Orientation):	45 Degree
Ends Configuration:	2-1/2in Female NST, 2-1/2in Male NST
Material(s):	Chrome Plated Brass
Special Properties:	Polished

Features:
Rocker lug swivel.

Part Number	Powhatan Part #	Elbow Degree	Male NST(NH)	Female NST(NH)	Material	Finish	Weight (Lbs.)
RSE30250F-C	-	30 deg.	2-1/2"	2-1/2"	Brass	Polished Chrome Plated	4.2660
RSE45250F	29-222-00133	45 deg.	2-1/2"	2-1/2"	Brass	Satin	4.3400
RSE45250F-C	29-222-00010	45 deg.	2-1/2"	2-1/2"	Brass	Polished Chrome Plated	4.0000
RSE90250F	29-232-00044	90 deg.	2-1/2"	2-1/2"	Brass	Satin	4.6600
RSE90250F-C	29-232-00019	90 deg.	2-1/2"	2-1/2"	Brass	Polished Chrome Plated	4.6600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
