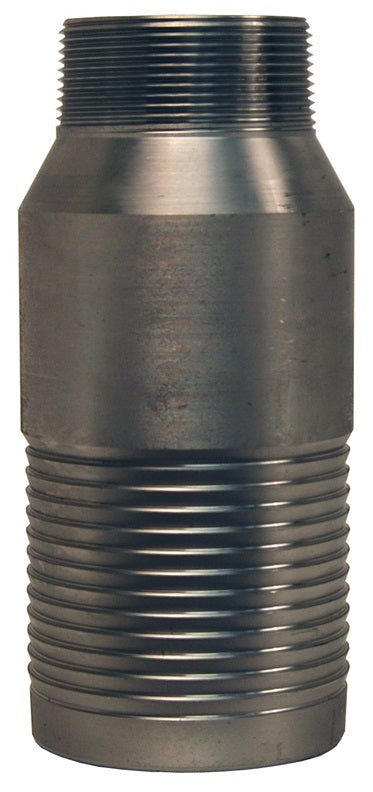

RST1005 by Dixon Valve | King Combination Nipple Reducer (Jump Size) | 3/4" Male NPT x 1" Hose ID | 316 Stainless Steel

Name: RST1005 by Dixon Valve | King Combination Nipple Reducer (Jump Size) | 3/4" Male NPT x 1" Hose ID | 316 Stainless Steel
Brand: Dixon
SKU: RST1005 Dixon
Price: 23.12 USD
Availability: InStock

Save $2.13

$25.25

$25.25 - $25.25

$25.25

$23.12

$23.12 - $23.12

$23.12

Dixon Valve
King Combination Nipple | Reducer (Jump Size) | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.

Quantity

Specifications for Variant SKU: RST1005 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 3/4in Male NPT
Material(s):	316 Stainless Steel

Safety Notes:
King Combination Nipples are not recommended for steam. 1-1/4" and above are not for compressible products such as air or nitrogen. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Plated Steel Part Number	316 Stainless Steel Part Number	Hose Shank	Male NPT
-	RST0501	3/4"	1/2"
STC0510	RST0510	3/4"	1"
STC1005	RST1005	1"	3/4"
STC1015	RST1015	1"	1-1/4"
STC1510	RST1510	1-1/4"	1"
STC1520	RST1520	1-1/4"	1-1/2"
STC2015	RST2015	1-1/2"	1-1/4"
STC2025	RST2025	1-1/2"	2"
STC175200	-	1-3/4"	2"
STC2520	RST2520	2"	1-1/2"
STC2530	-	2"	2-1/2"
STC2535	RST2535	2"	3"
STC3025	RST3025	2-1/2"	2"
STC3035	-	2-1/2"	3"
STC3525	RST3525	3"	2"
STC3530	-	3"	2-1/2"
STC3540	-	3"	4"
STC4035	-	4"	3"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
