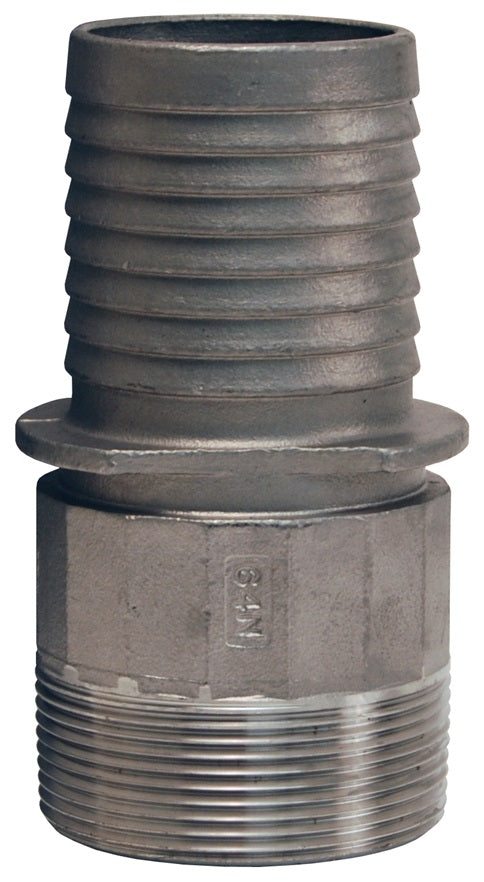

RST150NOS by Dixon Valve | King Combination Nipple External Swage Notched NOS Stem | 1-1/2" Male NPT x 1-1/2" Hose ID | 250 PSI | 316 Stainless Steel

RST150NOS by Dixon Valve | King Combination Nipple External Swage Notched NOS Stem | 1-1/2" Male NPT x 1-1/2" Hose ID | 250 PSI | 316 Stainless Steel

Save $3.76 Save $3.76
$33.81
$33.81 - $33.81
$33.81
$30.05
$30.05 - $30.05
$30.05

Dixon Valve
King Combination Nipple with External Swage Notched NOS Stem | Male NPT x Hose Barb

Recommended for use where lower working pressures are encountered, on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as L.P. gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: RST150NOS Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Hose Barb
Material(s): 316 Stainless Steel
Use:
  • For hose outside diameters of 2-4/64" and below, the couplings are crimp only.
  • For hose diameters of 2-5/64" and above, the couplings can be crimped or swaged.
Safety Notes:
  • Only use the NOS shank with the NOS ferrules.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
316 Stainless Steel
Part Number		 Size Working PSI
RST150NOS 1-1/2" 250 PSI
RST200NOS 2" 250 PSI
RST300NOS 3" 250 PSI
RST400NOS 4" -
