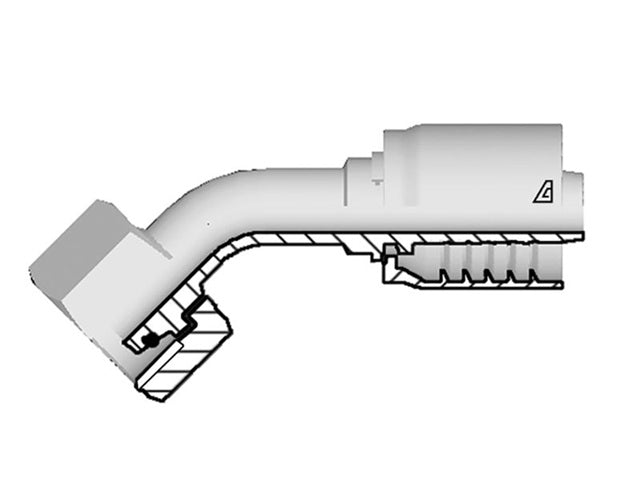

S-0618-FM4L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3853 Light | M18 Female Metric Swivel O-Ring 24° Seat x -06 Hose ID | Steel

Save $5.08

$17.77

$17.77 - $17.77

$17.77

$12.69

$12.69 - $12.69

$12.69

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3853 Light

Specifications for Variant SKU: S-0618-FM4L Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	mm	lbs/each
S-0618-FM4L	-06	3/8"	9.5mm	-18	M18x1.5	12mm	46.8mm	19.5mm	22mm	0.26 lbs
S-0822-FM4L	-08	1/2"	12.7mm	-22	M22x1.5	15mm	55.0mm	21.0mm	27mm	0.38 lbs
S-1026-FM4L	-10	5/8"	15.9mm	-26	M26x1.5	18mm	65.3mm	24.0mm	32mm	0.54 lbs
S-1230-FM4L	-12	3/4"	19.0mm	-30	M30x2	22mm	69.4mm	32.0mm	36mm	0.98 lbs
S-1636-FM4L	-16	1"	25.4mm	-36	M36x2	28mm	91.4mm	32.0mm	41mm	1.17 lbs
S-2045-FM4L	-20	1-1/4"	31.8mm	-45	M45x2	35mm	141.5mm	45.0mm	50mm	1.82 lbs
S-2452-FM4L	-24	1-1/2"	38.1mm	-52	M52x2	42mm	112.0mm	38.0mm	60mm	2.77 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
