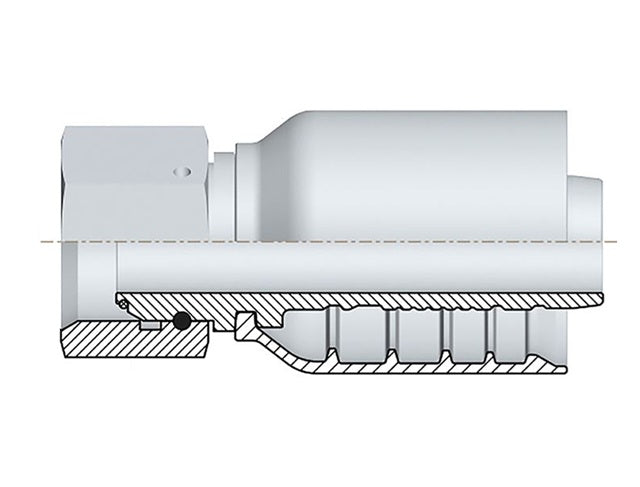

S-0808-FBPO Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female BSP O-Ring Female Swivel 60° Cone x -08 Hose ID | Steel

Name: S-0808-FBPO Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female BSP O-Ring Female Swivel 60° Cone x -08 Hose ID | Steel
Brand: Kuriyama
SKU: S-0808-FBPO Kuriyama
Price: 27.61 USD
Availability: InStock

Save $11.04

$38.65

$38.65 - $38.65

$38.65

$27.61

$27.61 - $27.61

$27.61

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female BSP O-Ring Female Swivel 60° Cone x Hose Barb

Specifications for Variant SKU: S-0808-FBPO Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female BSP, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
S-0606-FBPO	-06	3/8"	9.5mm	-06	3/8-19	17.0	22mm	0.20 lbs
S-0808-FBPO	-08	1/2"	12.7mm	-08	1/2-14	18.0	27mm	0.29 lbs
S-1212-FBPO	-12	3/4"	19.1mm	-12	3/4-14	25.8mm	32mm	0.62 lbs
S-1616-FBPO	-16	1"	25.4mm	-16	1-11	31.6mm	38mm	0.97 lbs
S-2424-FBPO	-24	1-1/2"	38.1mm	-24	1-1/2-11	37.8mm	55mm	2.56 lbs
