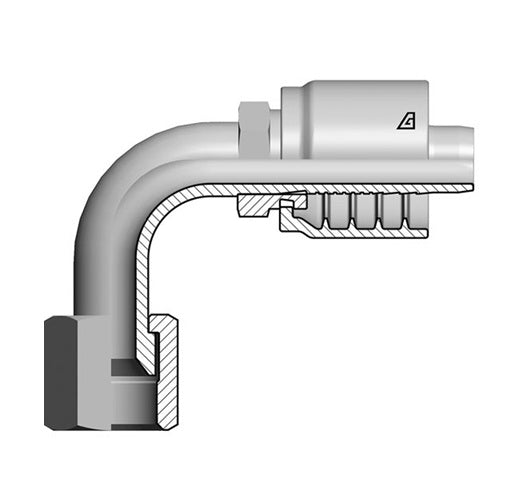

S-0808-FJ9S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Short Drop | -08 Female 37° JIC Swivel x -08 Hose ID | Steel

Save $10.21

$35.73

$35.73 - $35.73

$35.73

$25.52

$25.52 - $25.52

$25.52

Specifications for Variant SKU: S-0808-FJ9S Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia.		Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	in	CH mm	CH1 mm	lbs/each
S-0606-FJ9S	-06	3/8"	9.5mm	-06	9/16-18	43.0mm	25mm	17mm	19mm	0.27 lbs
S-0608-FJ9S	-06	3/8"	9.5mm	-08	3/4-16	32.5mm	28mm	-	25mm	0.29 lbs
S-0808-FJ9S	-08	1/2"	12.7mm	-08	3/4-16	48.0mm	29mm	19mm	22mm	0.36 lbs
S-0810-FJ9S	-08	1/2"	12.7mm	-10	7/8-14	38.0mm	32mm	-	27mm	0.41 lbs
S-0812-FJ9S	-08	1/2"	12.7mm	-12	1-1/16-20	37.3mm	46mm	-	32mm	0.52 lbs
S-1010-FJ9S	-10	5/8"	15.9mm	-10	7/8-14	43.0mm	37mm	24mm	27mm	0.62 lbs
S-1012-FJ9S	-10	5/8"	15.9mm	-10	1-1/16-20	48.0mm	48mm	-	32mm	0.64 lbs
S-1212-FJ9S	-12	3/4"	19.1mm	-12	1-1/16-12	64.0mm	48mm	27mm	32mm	0.95 lbs
S-1216-FJ9S	-12	3/4"	19.1mm	-16	1-5/16-12	53.6mm	53mm	-	38mm	0.96 lbs
S-1616-FJ9S	-16	1"	25.4mm	-16	1-5/16-12	87.0mm	56mm	36mm	41mm	1.74 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
