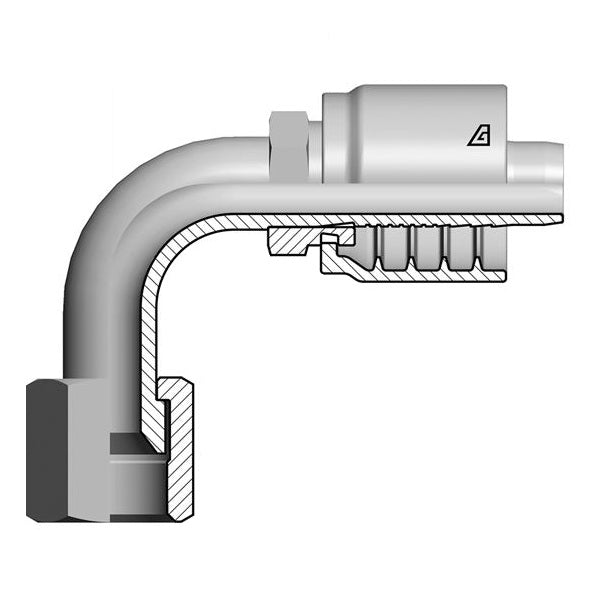

S-1010-FJ9L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Long Drop | -10 Female 37° JIC Swivel x -10 Hose ID | Steel

S-1010-FJ9L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 90° Elbow | Long Drop | -10 Female 37° JIC Swivel x -10 Hose ID | Steel

Save $15.76 Save $15.76
$55.17
$55.17 - $55.17
$55.17
$39.41
$39.41 - $39.41
$39.41

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | with Stem Hexagon | 90° Elbow | Long Drop | Female 37° JIC Swivel x Hose Barb
Specifications for Variant SKU: S-1010-FJ9L Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D Drop Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm in CH
mm		 CH1
mm		 lbs/each
S-0606-FJ9L -06 3/8" 9.5mm -06 9/16-18 43.0mm 54mm 17mm 19mm 0.29 lbs
S-0808-FJ9L -08 1/2" 12.7mm -08 3/4-16 50.0mm 64mm 19mm 22mm 0.40 lbs
S-1010-FJ9L -10 5/8" 15.9mm -10 7/8-14 50.0mm 70mm 24mm 27mm 0.69 lbs
S-1212-FJ9L -12 3/4" 19.1mm -12 1-1/16-12 54.0mm 96mm 27mm 32mm 1.06 lbs
S-1616-FJ9L -16 1" 25.4mm -16 1-5/16-12 72mm 114mm 36mm 41mm 1.94 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
