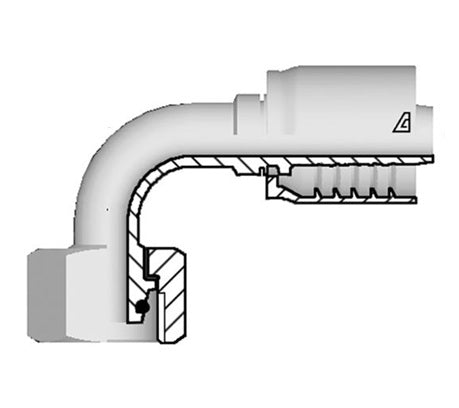

S-1026-FM9L Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3853 Light | M26 Female Metric Swivel O-Ring 24° Seat x -10 Hose ID | Steel

Save $2.80

$25.20

$25.20 - $25.20

$25.20

$22.40

$22.40 - $22.40

$22.40

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3853 Light

Quantity

Specifications for Variant SKU: S-1026-FM9L Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	mm	lbs/each
S-0618-FM9L	-06	3/8"	9.5mm	-18	M18x1.5	12mm	32.8mm	39.0mm	22mm	0.27 lbs
S-0822-FM9L	-08	1/2"	12.7mm	-22	M22x1.5	15mm	39.8mm	40.5mm	27mm	0.38 lbs
S-1026-FM9L	-10	5/8"	15.9mm	-26	M26x1.5	18mm	51.4mm	48.0mm	32mm	0.56 lbs
S-1230-FM9L	-12	3/4"	19.0mm	-30	M30x2	22mm	52.1mm	59.0mm	36mm	1.07 lbs
S-1636-FM9L	-16	1"	25.4mm	-36	M36x2	28mm	77.6mm	68.0mm	41mm	1.60 lbs
S-2045-FM9L	-20	1-1/4"	31.8mm	-45	M45x2	35mm	90.5mm	89.0mm	50mm	2.04 lbs
S-2452-FM9L	-24	1-1/2"	38.1mm	-52	M52x2	42mm	106.5mm	100.0mm	60mm	3.18 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
