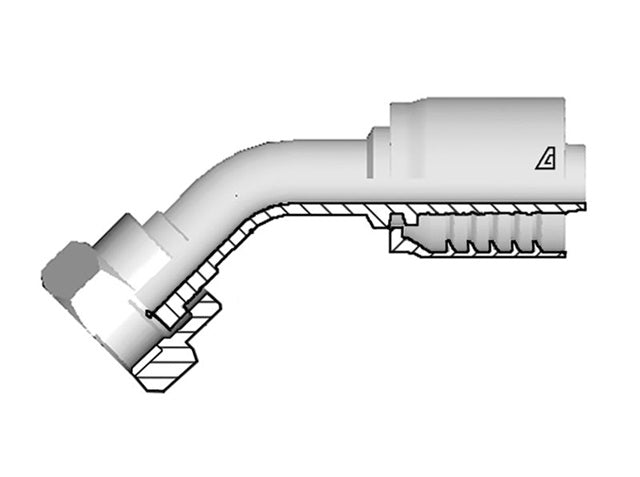

S-1216-FO45 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -16 Female ORFS x -12 Hose ID | Steel

Save $33.94

$118.80

$118.80 - $118.80

$118.80

$84.86

$84.86 - $84.86

$84.86

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Female ORFS (O-Ring Face Seal) x Hose Barb

Specifications for Variant SKU: S-1216-FO45 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia.	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	CH1 mm	lbs/each
S-0606-FO45	-06	3/8"	9.5mm	-06	11/16-16	48mm	17.0mm	22mm	0.25 lbs
S-0808-FO45	-08	1/2"	12.7mm	-08	13/16-16	54mm	22.0mm	24mm	0.32 lbs
S-1010-FO45	-10	5/8"	15.9mm	-10	1-14	58mm	17.0mm	30mm	0.60 lbs
S-1212-FO45	-12	3/4"	19.1mm	-12	1-3/16-12	67mm	21.0mm	36mm	0.93 lbs
S-1216-FO45	-12	3/4"	19.0mm	-16	1-7/16-12	82mm	26.0mm	36mm	1.43 lbs
S-1616-FO45	-16	1"	25.4mm	-16	1-7/16-12	95mm	28.0mm	41mm	1.46 lbs
S-2020-FO45	-20	1-1/4"	31.8mm	-20	1-11/16-12	108mm	36.5mm	50mm	2.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
