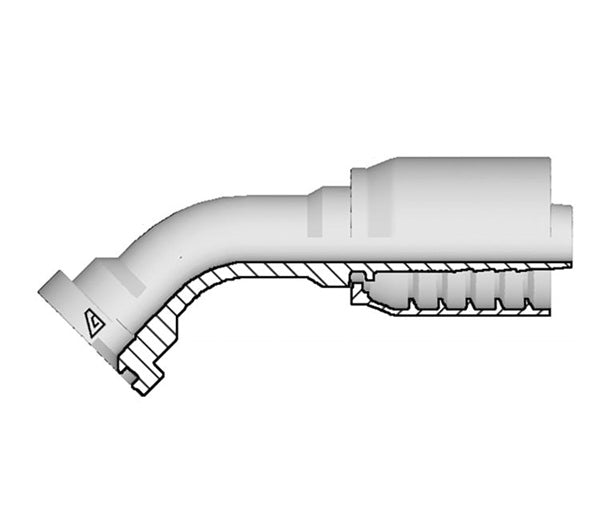

S-1616-C624 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -16 Code 62 Flange x -16 Hose ID | 6000 PSI | Steel

Save $6.23

$56.05

$56.05 - $56.05

$56.05

$49.82

$49.82 - $49.82

$49.82

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI

Quantity

Specifications for Variant SKU: S-1616-C624 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	Flange Dash Size	lbs/each
S-1212-C624	-12	3/4"	19.0mm	1.63"	41.3mm	75.0mm	30.0mm	-12	0.96 lbs
S-1216-C624	-12	3/4"	19.0mm	1.88"	47.6mm	81.0mm	33.0mm	-16	1.16 lbs
S-1612-C624	-16	1"	25.4mm	1.63"	41.3mm	77.0mm	29.5mm	-12	1.29 lbs
S-1616-C624	-16	1"	25.4mm	1.88"	47.6mm	96.7mm	36.0mm	-16	1.52 lbs
S-1620-C624	-16	1"	25.4mm	2.13"	54.0mm	96.0mm	44.0mm	-20	1.86 lbs
S-2016-C624	-20	1"	25.4mm	1.88"	47.6mm	97.0mm	34.0mm	-16	2.00 lbs
S-2020-C624	-20	1-1/4"	31.8mm	2.13"	54.0mm	102.0mm	41.0mm	-20	2.18 lbs
S-2024-C624	-20	1-1/4"	31.8mm	2.50"	63.5mm	111.7mm	48.0mm	-24	2.95 lbs
S-2424-C624	-24	1-1/2"	38.1mm	2.50"	63.5mm	143.0mm	48.0mm	-24	3.60 lbs
S-2432-C624	-24	1-1/2"	38.1mm	3.13"	79.4mm	137.0mm	55.0mm	-32	4.61 lbs
S-3232-C624	-32	2"	50.8mm	3.13"	79.4mm	177.0mm	61.0mm	-32	4.83 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
