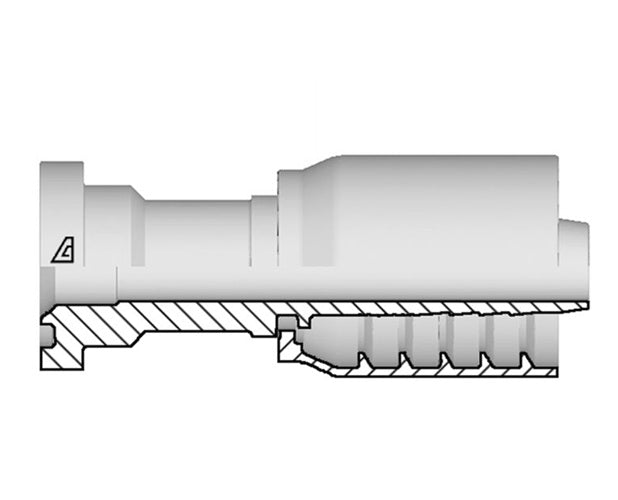

S-2016-C62S Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -16 Code 62 Flange x -20 Hose ID | 6000 PSI | Steel

Save $32.91

$115.18

$115.18 - $115.18

$115.18

$82.27

$82.27 - $82.27

$82.27

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI

Specifications for Variant SKU: S-2016-C62S Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1in Code 62 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	Flange Dash Size	lbs/each
S-1212-C62S	-12	3/4"	19.1mm	1.63"	41.3mm	53.1mm	-12	0.85 lbs
S-1216-C62S	-12	3/4"	19.1mm	1.88"	47.6mm	56.5mm	-16	1.00 lbs
S-1612-C62S	-16	1"	25.4mm	1.63"	41.3mm	59.1mm	-12	1.15 lbs
S-1616-C62S	-16	1"	25.4mm	1.88"	47.6mm	59.1mm	-16	1.32 lbs
S-1620-C62S	-16	1"	25.4mm	2.13"	54.0mm	66.1mm	-20	1.54 lbs
S-1624-C62S	-16	1"	25.4mm	2.50"	63.5mm	71.1mm	-24	1.98 lbs
S-2016-C62S	-20	1-1/4"	31.8mm	1.88"	47.6mm	60.0mm	-16	1.57 lbs
S-2020-C62S	-20	1-1/4"	31.8mm	2.13"	54.0mm	62.2mm	-20	1.89 lbs
S-2024-C62S	-20	1-1/4"	31.8mm	2.50"	63.5mm	74.0mm	-24	2.41 lbs
S-2420-C62S	-24	1-1/2"	38.1mm	2.13"	54.0mm	70.0mm	-20	2.55 lbs
S-2424-C62S	-24	1-1/2"	38.1mm	2.50"	63.5mm	68.5mm	-24	2.91 lbs
S-2432-C62S	-24	1-1/2"	38.1mm	3.13"	79.4mm	88.0mm	-32	4.19 lbs
S-3232-C62S	-32	2"	50.8mm	3.13"	79.4mm	103.0mm	-32	5.47 lbs
