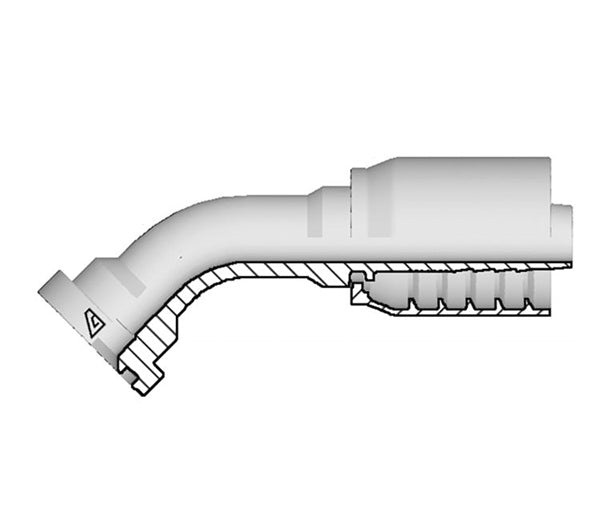

S-2020-C623 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -20 Code 62 Flange x -20 Hose ID | 6000 PSI | Steel

Save $41.64

$145.73

$145.73 - $145.73

$145.73

$104.09

$104.09 - $104.09

$104.09

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 30° Elbow | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI

Specifications for Variant SKU: S-2020-C623 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/4in Code 62 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	Flange Dash Size	lbs/each
S-1616-C623	-16	1"	25.4mm	1.88"	47.6mm	-	-16	1.52 lbs
S-2020-C623	-20	1-1/4"	31.8mm	2.13"	54.0mm	-	-20	2.18 lbs
