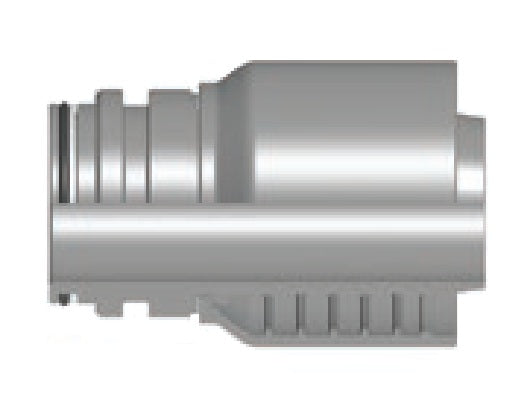

S-2020-SLMS Staplelok by Kuriyama | Rapid Staplelok Mining Fitting | -20 Hose Barb x -20 Male Staplelok End | Steel

S-2020-SLMS Staplelok by Kuriyama | Rapid Staplelok Mining Fitting | -20 Hose Barb x -20 Male Staplelok End | Steel

Save $14.40 Save $14.40
$70.45
$70.45 - $70.45
$70.45
$56.05
$56.05 - $56.05
$56.05

Kuriyama of America Inc.
Staplelok | Rapid Staplelok Mining Fitting | Hose Barb x Male Staplelok End

MSHA Approved Mining Fitting.
Specifications for Variant SKU: S-2020-SLMS Kuriyama
Brand: Staplelok
Series: Rapid Staplelok
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 38mm Male Staplelok
Material(s): Steel
Applicable Specs & Approvals: Applicable MSHA Standards
Specifications:
  • MSHA Approved
Rapid Staplelok Male
Part Number Dash Size Hose ID Coupling
Diameter		 C Cut-Off
Factor		 Weight
in mm Dash
Size		 Size (mm) (mm) (lbs/each)
B-1212-SLMS 12 3/4" 19.0mm 12 24mm 38.1mm 0.61 lbs
B-1616-SLMS 16 1" 25.4mm 16 31mm 46.1mm 1.17 lbs
B-2020-SLMS 20 1-1/4" 31.8mm 20 38mm 46.9mm 1.77 lbs
S-2424-SLMS 24 1-1/2" 38.1mm 24 47mm 54.5mm 2.38 lbs
Rapid Staplelok Staples
Part Number Dash Size Hose ID Weight
in mm (lbs/each)
RS-SS-04D 04 1/4" 6.4mm 0.03 lbs
RS-SS-06D 06 3/8" 9.5mm 0.03 lbs
RS-SS-08D 08 1/2" 12.7mm 0.04 lbs
RS-SS-12D 12 3/4" 19.0mm 0.04 lbs
RS-SS-16D 16 1" 25.4mm 0.12 lbs
RS-SS-20D 20 1-1/4" 31.8mm 0.14 lbs
RS-SS-32D 32 2" 50.8mm 0.17 lbs
