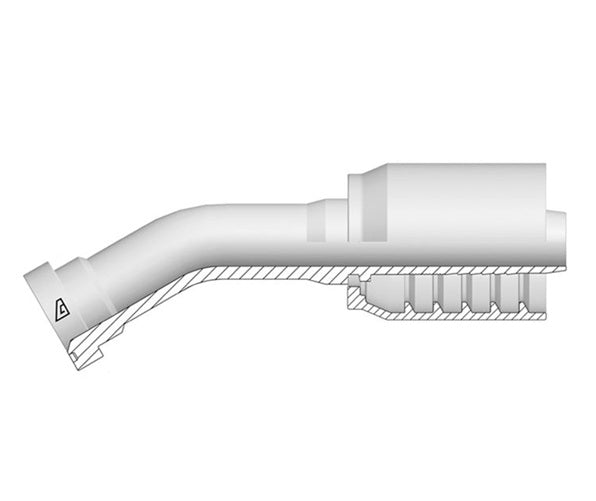

S-2024-CFL3 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 30° Elbow | -24 CAT Flange x -20 Hose ID | Steel

Save $72.44

$253.54

$253.54 - $253.54

$253.54

$181.10

$181.10 - $181.10

$181.10

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 30° Elbow | CAT Flange x Hose Barb

Specifications for Variant SKU: S-2024-CFL3 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/2in CAT Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	T Thickness	D Drop	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	mm	Flange Dash Size	lbs/each
S-1212-CFL3	-12	3/4"	19.0mm	1.63"	41.3mm	113mm	14.3mm	24.0mm	-12	1.20 lbs
S-1216-CFL3	-12	3/4"	19.0mm	1.88"	47.6mm	118mm	14.3mm	26.5mm	-16	1.40 lbs
S-1616-CFL3	-16	1"	25.4mm	1.88"	47.6mm	138mm	14.3mm	27.0mm	-16	1.99 lbs
S-1620-CFL3	-16	1"	25.4mm	2.13"	54.0mm	137mm	14.3mm	25.5mm	-20	2.02 lbs
S-2020-CFL3	-20	1-1/4"	31.8mm	2.13"	54.0mm	160mm	14.3mm	28.0mm	-20	2.58 lbs
S-2024-CFL3	-20	1-1/4"	31.8mm	2.50"	63.5mm	167mm	14.3mm	37.5mm	-24	2.65 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
