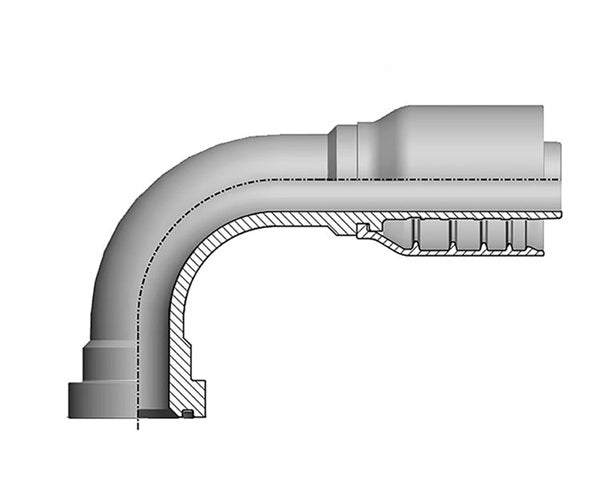

S-2424-CFL9 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 CAT Flange x -24 Hose ID | Steel

Save $62.92

$220.22

$220.22 - $220.22

$220.22

$157.30

$157.30 - $157.30

$157.30

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | CAT Flange x Hose Barb

Specifications for Variant SKU: S-2424-CFL9 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in CAT Flange, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	T Thickness	D Drop	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	mm	Flange Dash Size	lbs/each
S-1212-CFL9	-12	3/4"	19.0mm	1.63"	41.3mm	67.0mm	14.3mm	67.0mm	-12	1.20 lbs
S-1216-CFL9	-12	3/4"	19.0mm	1.88"	47.6mm	69.0mm	14.3mm	70.0mm	-16	1.40 lbs
S-1616-CFL9	-16	1"	25.4mm	1.88"	47.6mm	85.0mm	14.3mm	79.0mm	-16	1.99 lbs
S-1620-CFL9	-16	1"	25.4mm	2.13"	54.0mm	80.0mm	14.3mm	82.5mm	-20	2.18 lbs
S-2020-CFL9	-20	1-1/4"	31.8mm	2.13"	54.0mm	96.0mm	14.3mm	93.0mm	-20	2.98 lbs
S-2024-CFL9	-20	1-1/4"	31.8mm	2.50"	63.5mm	97.0mm	14.3mm	101.0mm	-24	3.41 lbs
S-2424-CFL9	-24	1-1/2"	38.1mm	2.50"	63.5mm	117.0mm	14.3mm	109.0mm	-24	4.01 lbs
S-3232-CFL9	-32	2"	50.8mm	3.12"	79.4mm	141.0mm	14.3mm	138.5mm	-32	5.25 lbs
