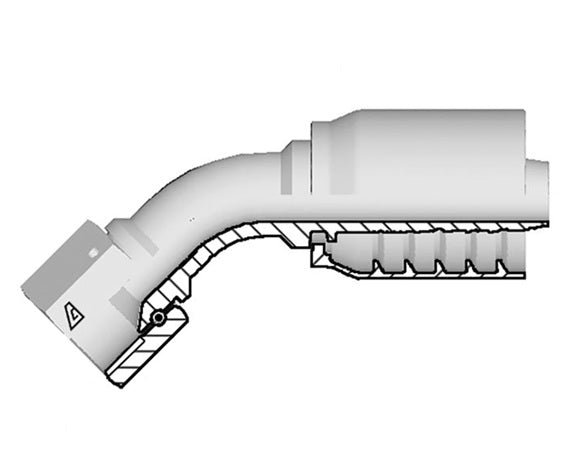

S-2424-FJ45 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | 45° Elbow | Medium Drop | -24 Female 37° JIC Swivel x -24 Hose ID | Steel

Save $11.67

$105.06

$105.06 - $105.06

$105.06

$93.39

$93.39 - $93.39

$93.39

Quantity

Specifications for Variant SKU: S-2424-FJ45 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Medium Drop
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	in	mm	lbs/each
S-0606-FJ45	-06	3/8"	9.5mm	-06	9/16-18	46.3mm	11.0mm	19mm	0.25 lbs
S-0808-FJ45	-08	1/2"	12.7mm	-08	3/4-16	51.6mm	15.0mm	25mm	0.36 lbs
S-1010-FJ45	-10	5/8"	15.9mm	-10	7/8-14	62.2mm	19.0mm	27mm	0.58 lbs
S-1212-FJ45	-12	3/4"	19.1mm	-12	1 1/16-12	67.5mm	21.0mm	32mm	0.90 lbs
S-1216-FJ45	-12	3/4"	19.1mm	-16	1-5/16-12	71.4mm	26.0mm	38mm	1.04 lbs
S-1616-FJ45	-16	1"	25.4mm	-16	1-5/16-12	79.4mm	24.0mm	38mm	1.57 lbs
S-2020-FJ45	-20	1-1/4"	31.8mm	-20	1-5/8-12	98.0mm	37.0mm	50mm	2.31 lbs
S-2424-FJ45	-24	1-1/2"	38.1mm	-24	1-7/8-12	118.0mm	43.50mm	55mm	3.39 lbs
S-3232-FJ45	-32	2"	50.8mm	-32	2-1/2-12	162.3mm	51.5mm	70mm	4.83 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
