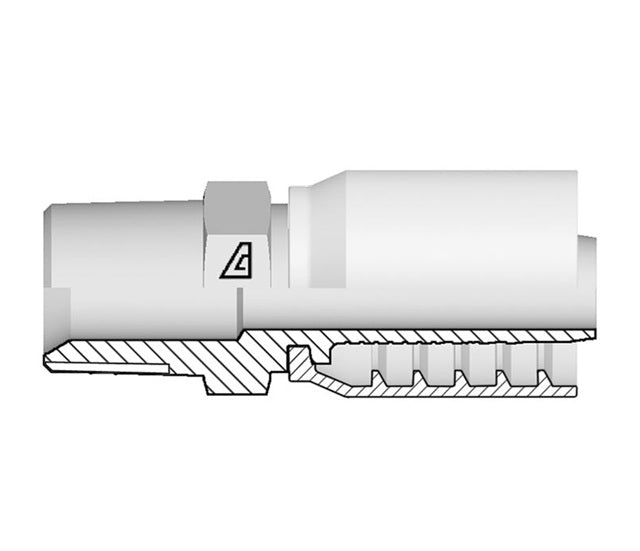

S-2424-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -24 Male NPTF 60° Seat x -24 Hose ID | Steel

Name: S-2424-MNPT Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -24 Male NPTF 60° Seat x -24 Hose ID | Steel
Brand: Kuriyama
SKU: S-2424-MNPT Kuriyama
Price: 85.18 USD
Availability: InStock

Save $34.07

$119.25

$119.25 - $119.25

$119.25

$85.18

$85.18 - $85.18

$85.18

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male NPTF 60° Seat x Hose Barb

Specifications for Variant SKU: S-2424-MNPT Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Male NPTF, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
S-1212-MNPT	-12	3/4"	19.1mm	-12	3/4-14	35.5mm	27mm	0.60 lbs
S-1616-MNPT	-16	1"	25.4mm	-16	1-11-1/2	44.4mm	36mm	1.06 lbs
S-2020-MNPT	-20	1-1/4"	31.8mm	-20	1-1/4-11-1/2	50.9mm	46mm	1.68 lbs
S-2424-MNPT	-24	1-1/2"	38.1mm	-24	1-1/2-11-1/2	54.5mm	50mm	2.37 lbs
S-3232-MNPT	-32	2"	50.8mm	-32	2-11-1/2	53.7mm	65mm	4.22 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
