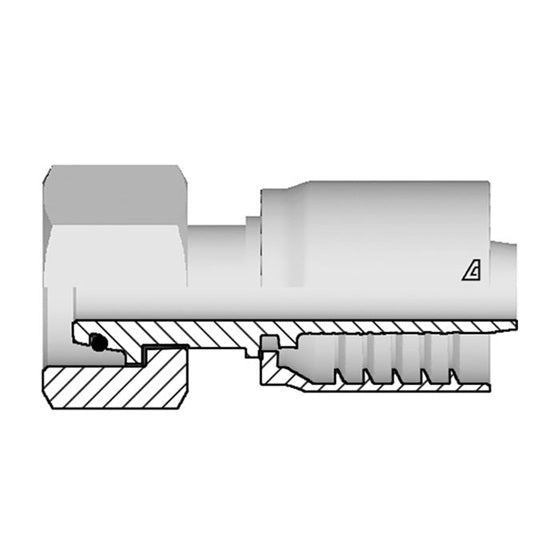

S-2452-FMOL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M52 Female Metric Swivel 24° Seat x -24 Hose ID | Steel

Name: S-2452-FMOL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M52 Female Metric Swivel 24° Seat x -24 Hose ID | Steel
Brand: Kuriyama
SKU: S-2452-FMOL Kuriyama
Price: 90.79 USD
Availability: InStock

Save $36.32

$127.11

$127.11 - $127.11

$127.11

$90.79

$90.79 - $90.79

$90.79

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female Metric Swivel 24° Seat x Hose Barb

DIN 3853 Light

Specifications for Variant SKU: S-2452-FMOL Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
S-0618-FMOL	-06	3/8"	9.5mm	-18	M18x1.5	12mm	24.3mm	19mm	0.23 lbs
S-0822-FMOL	-08	1/2"	12.7mm	-22	M22x1.5	15mm	26.1mm	22mm	0.32 lbs
S-1026-FMOL	-10	5/8"	15.9mm	-26	M26x1.5	18mm	27.1mm	27mm	0.45 lbs
S-1230-FMOL	-12	3/4"	19.0mm	-30	M30x2	22mm	31.6mm	32mm	0.76 lbs
S-1636-FMOL	-16	1"	25.4mm	-36	M36x2	28mm	34.4mm	36mm	0.96 lbs
S-2045-FMOL	-20	1-1/4"	31.8mm	-45	M45x2	35mm	40.0mm	46mm	1.38 lbs
S-2452-FMOL	-24	1-1/2"	38.1mm	-52	M52x2	42mm	42.0mm	55mm	2.12 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
