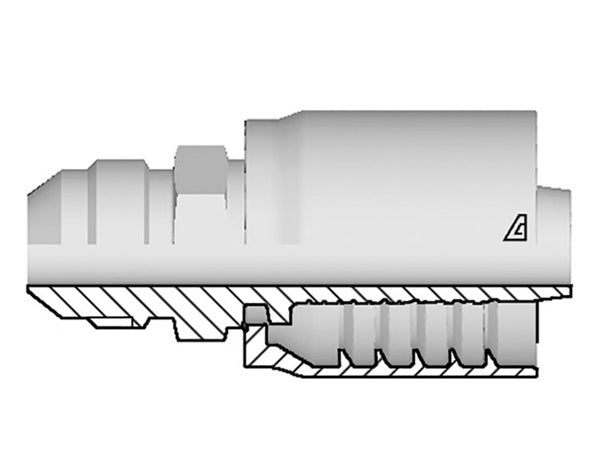

S-3232-MJIC Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Male JIC x -32 Hose ID | Steel

S-3232-MJIC Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -32 Male JIC x -32 Hose ID | Steel

Save $58.70 Save $58.70
$205.46
$205.46 - $205.46
$205.46
$146.76
$146.76 - $146.76
$146.76

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Male JIC x Hose Barb
Specifications for Variant SKU: S-3232-MJIC Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 2in Male JIC, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. CH1 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
S-0606-MJIC -06 3/8" 9.5mm -06 9/16-18 27.0mm 17mm 0.18 lbs
S-0808-MJIC -08 1/2" 12.7mm -08 3/4-16 30.6mm 19mm 0.25 lbs
S-1010-MJIC -10 5/8" 15.9mm -10 7/8-14 35.3mm 24mm 0.40 lbs
S-1212-MJIC -12 3/4" 19.1mm -12 1 1/16-12 39.1mm 27mm 0.62 lbs
S-1616-MJIC -16 1" 25.4mm -16 1 5/16-12 46.1mm 36mm 1.06 lbs
S-2020-MJIC -20 1-1/4" 31.8mm -20 1 5/8-12 48.5mm 46mm 1.68 lbs
S-3232-MJIC -32 2" 50.8mm -32 2 1/2-12 55.4mm 70mm 3.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
