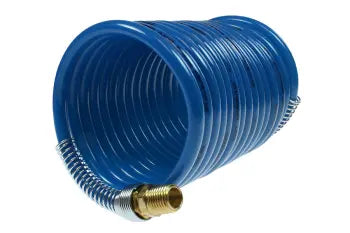

S14-17B by Coilhose | Stowaway™ Heavy Duty Coiled Air Hose | 1/4" Hose ID | 1/4" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 17ft

Save $19.16

$47.90

$47.90 - $47.90

$47.90

$28.74

$28.74 - $28.74

$28.74

Coilhose Pneumatics - Coiled Hose - Stowaway™ Heavy Duty Nylon Air Hose

Specifications for Variant SKU: S14-17B Coilhose
Brand:	Stowaway
Hose Color(s):	Blue
Material(s):	Nylon
Special Properties:	Heavy Duty, Swivel

Overview:
Stowaway Heavy Duty Nylon Air Hose features extra heavy wall thickness to meet the requirements of the most demanding applications. Heavy walls provide additional protection against oil, grease, gasoline and abrasion as well as increased working pressure. Available in Blue.
Applications:
Air Hoists, Construction Sites, Heavy Duty Tools, Chippers, Cement Plants, Truck Maintenance & Repairs, Mining Operations and Moving Cylinders.

Specifications:
Model	Tube I.D	Tube O.D	WallThickness	WPat 70° F	NominalCoil O.D.	RetractedLength	RecommendedWorkingLength	NominalWeight25'	StandardColor
S14-25	1/4"	.309/.315	.038+/-.003	220 PSI	3-1/2"	10-1/2"	22'	13 oz.	Blue
S38-25	3/8"	.495/.505	.062+/-.004	230 PSI	5-5/8"	10-1/4"	21'	20 oz.	Blue

Part No	Inside Diameter	Overall Length	Fittings	Color	Retracted Length	Working Length
S14-12	1/4"	12ft	1/4" 2 Rigid MPT	Blue	4.7"	9.6ft
S14-12A	1/4"	12ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	4.7"	9.6ft
S14-12B	1/4"	12ft	1/4" 2 Swivel MPT	Blue	4.7"	9.6ft
S14-17	1/4"	17ft	1/4" 2 Rigid MPT	Blue	6.6"	13.6ft
S14-17A	1/4"	17ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	6.6"	13.6ft
S14-17B	1/4"	17ft	1/4" 2 Swivel MPT	Blue	6.6"	13.6ft
S14-25	1/4"	25ft	1/4" 2 Rigid MPT	Blue	9.7"	20ft
S14-25A	1/4"	25ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	9.7"	20ft
S14-25B	1/4"	25ft	1/4" 2 Swivel MPT	Blue	9.7"	20ft
S14-50	1/4"	50ft	1/4" 2 Rigid MPT	Blue	19.3"	40ft
S14-50A	1/4"	50ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	19.3"	40ft
S14-50B	1/4"	50ft	1/4" 2 Swivel MPT	Blue	19.3"	40ft

S38-12	3/8"	12ft	3/8" 2 Rigid MPT	Blue	5"	9.6ft
S38-12A	3/8"	12ft	3/8" 1 Rigid / 1 Swivel MPT	Blue	5"	9.6ft
S38-12B	3/8"	12ft	3/8" 2 Swivel MPT	Blue	5"	9.6ft
S38-124	3/8"	12ft	1/4" 2 Rigid MPT	Blue	5"	9.6ft
S38-124A	3/8"	12ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	5"	9.6ft
S38-124B	3/8"	12ft	1/4" 2 Swivel MPT	Blue	5"	9.6ft
S38-17	3/8"	17ft	3/8" 2 Rigid MPT	Blue	7"	13.6ft
S38-17A	3/8"	17ft	3/8" 1 Rigid / 1 Swivel MPT	Blue	7"	13.6ft
S38-17B	3/8"	17ft	3/8" 2 Swivel MPT	Blue	7"	13.6ft
S38-174	3/8"	17ft	1/4" 2 Rigid MPT	Blue	7"	13.6ft
S38-174A	3/8"	17ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	7"	13.6ft
S38-174B	3/8"	17ft	1/4" 2 Swivel MPT	Blue	7"	13.6ft
S38-25	3/8"	25ft	3/8" 2 Rigid MPT	Blue	10"	20ft
S38-25A	3/8"	25ft	3/8" 1 Rigid / 1 Swivel MPT	Blue	10"	20ft
S38-25B	3/8"	25ft	3/8" 2 Swivel MPT	Blue	10"	20ft
S38-254	3/8"	25ft	1/4" 2 Rigid MPT	Blue	10"	20ft
S38-254A	3/8"	25ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	10"	20ft
S38-254B	3/8"	25ft	1/4" 2 Swivel MPT	Blue	10"	20ft
S38-50	3/8"	50ft	3/8" 2 Rigid MPT	Blue	19.5"	40ft
S38-50A	3/8"	50ft	3/8" 1 Rigid / 1 Swivel MPT	Blue	19.5"	40ft
S38-50B	3/8"	50ft	3/8" 2 Swivel MPT	Blue	19.5"	40ft
S38-504	3/8"	50ft	1/4" 2 Rigid MPT	Blue	19.5"	40ft
S38-504A	3/8"	50ft	1/4" 1 Rigid / 1 Swivel MPT	Blue	19.5"	40ft
S38-504B	3/8"	50ft	1/4" 2 Swivel MPT	Blue	19.5"	40ft

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
