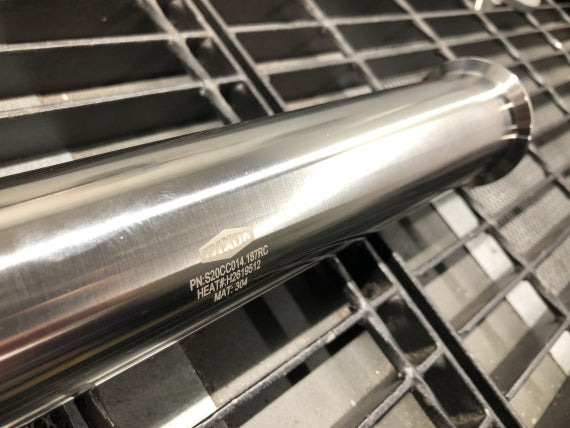

S15CC020.000GC Dixon Valve Sanitary Spool - 1-1/2" - Clamp x Clamp Ends - 20" Overall Length - 304 Stainless Steel - #7 Polished 32Ra ID/OD Finish

S15CC020.000GC Dixon Valve Sanitary Spool - 1-1/2" - Clamp x Clamp Ends - 20" Overall Length - 304 Stainless Steel - #7 Polished 32Ra ID/OD Finish

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Spools

Sanitary spools are pre-fabricated lengths of stainless steel tubing with sanitary fittings welded to the ends.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: S15CC020.000GC Dixon
Applications:
  • OEM skid packages and equipment that have predetermined spool specifications: Tube OD and length, end connections, and finish.
Features:
  • Clamp connection, standard
Construction:
  • 304 or 316L Stainless Steel
  • Surface Finish: 32Ra ID/OD Standard
Specifications:
  • 3A-authorizaton number 621, 63-04 (sanitary fittings)
Part Number Size Connection Type Overall
Length		 Material Surface Finish
S10CC004.000GC 1" Clamp x Clamp 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S10CC006.000GC 1" Clamp x Clamp 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S10CC006.000RF 1" Clamp x Clamp 6" 316L Stainless Steel SF1 Mechanically Polished 20Ra ID and 32Ra OD Finish
S15CC002.025RC 1-1/2" Clamp x Clamp 2.025" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC004.000GC 1-1/2" Clamp x Clamp 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC005.500RC 1-1/2" Clamp x Clamp 5.5" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC006.000GC 1-1/2" Clamp x Clamp 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC006.000RC 1-1/2" Clamp x Clamp 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC007.500RC 1-1/2" Clamp x Clamp 7.5" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC008.000GC 1-1/2" Clamp x Clamp 8" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC010.000GC 1-1/2" Clamp x Clamp 10" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC012.000GC 1-1/2" Clamp x Clamp 12" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC012.000RC 1-1/2" Clamp x Clamp 12" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC015.000GC 1-1/2" Clamp x Clamp 15" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC015.000RC 1-1/2" Clamp x Clamp 15" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC018.000GC 1-1/2" Clamp x Clamp 18" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC018.000RC 1-1/2" Clamp x Clamp 18" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC020.000GC 1-1/2" Clamp x Clamp 20" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC024.000GC 1-1/2" Clamp x Clamp 24" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S15CC024.000RC 1-1/2" Clamp x Clamp 24" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CB006.000GC 2" Clamp x Weld 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CB006.000RC 2" Clamp x Weld 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CB006.500GC 2" Clamp x Weld 6.5" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CB018.000GC 2" Clamp x Weld 18" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC004.000GC 2" Clamp x Clamp 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC006.000GC 2" Clamp x Clamp 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC006.000RC 2" Clamp x Clamp 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC007.000RC 2" Clamp x Clamp 7" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC008.000G 2" Clamp x Clamp 8" 304 Stainless Steel SF2 Mechanically Polished 25Ra ID and 32Ra OD Finish
S20CC008.000GC 2" Clamp x Clamp 8" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC012.000GC 2" Clamp x Clamp 12" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC012.000RC 2" Clamp x Clamp 12" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC016.000RC 2" Clamp x Clamp 16" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC018.000GC 2" Clamp x Clamp 18" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC018.000RC 2" Clamp x Clamp 18" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC024.000GC 2" Clamp x Clamp 24" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S20CC024.000RC 2" Clamp x Clamp 24" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CB004.000GC 3" Clamp x Weld 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CB024.000RC 3" Clamp x Weld 24" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CC002.250GC 3" Clamp x Clamp 2.25" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CC006.000RC 3" Clamp x Clamp 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CC006.000RG 3" Clamp x Clamp 6" 316L Stainless Steel SF2 Mechanically Polished 25Ra ID and 32Ra OD Finish
S30CC007.870GC 3" Clamp x Clamp 7.87" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CC011.844GC 3" Clamp x Clamp 11.844" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S30CC017.000RC 3" Clamp x Clamp 17" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S40CB004.000GC 4" Clamp x Weld 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S40CC006.00GC 4" Clamp x Clamp 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S40CC024.000GC 4" Clamp x Clamp 24" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S40FT027.500GC 4" Female I-Line x Threaded Bevel 27.5" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S50CC004.000GC 1/2" Clamp x Clamp 4" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S50CC004.000RF 1/2" Clamp x Clamp 4" 316L Stainless Steel SF1 Mechanically Polished 20Ra ID and 32Ra OD Finish
S60CB006.000GC 6" Clamp x Weld 6" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S60CC006.000RC 6" Clamp x Clamp 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S60CC012.000GC 6" Clamp x Clamp 12" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S60CC024.000GC 6" Clamp x Clamp 24" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S60CC036.000RC 6" Clamp x Clamp 36" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
S60CC048.000GC 6" Clamp x Clamp 48" 304 Stainless Steel #7 Polished 32Ra ID/OD Finish
S80CC006.000RC 8" Clamp x Clamp 6" 316L Stainless Steel #7 Polished 32Ra ID/OD Finish
