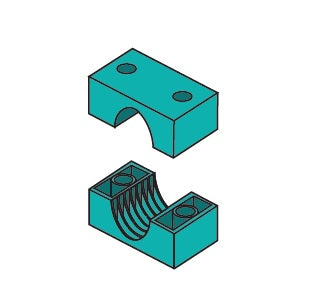

S5027C ZSi-Foster | Beta Clamp | Standard Series | For 1-1/4" Pipe | Cushion Body ONLY | Polypropylene

S5027C by ZSi-Foster | Beta Clamp | Standard Series | For 1-1/4" Pipe | Cushion Body ONLY | Polypropylene

Save $0.17 Save $0.17
$1.70
$1.70 - $1.70
$1.70
$1.53
$1.53 - $1.53
$1.53

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - Cushion Body ONLY - Polypropylene

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Specifications for Variant SKU: S5027C ZSI-Foster
Series: Standard Series
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Installation:
Cushion for:
Tube
Part Number		 Pipe
Part Number		 Size
- S1007C 1/8"
S1004C S2009C 1/4"
S1006C S2011C 3/8"
S2008C S3014C 1/2"
S2010C - 5/8"
S3012C S4017C 3/4"
S3015C - 7/8"
S3016C S5021C 1"
S4018C - 1-1/8"
S5020C S5027C 1-1/4"
S5024C S6030C 1-1/2"
S6028C - 1-3/4"
S6032C S7038C 2"
S7036C - 2-1/4"
S7040C - 2-1/2"
S7044C - 2-3/4"
S7048C - 3"
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
