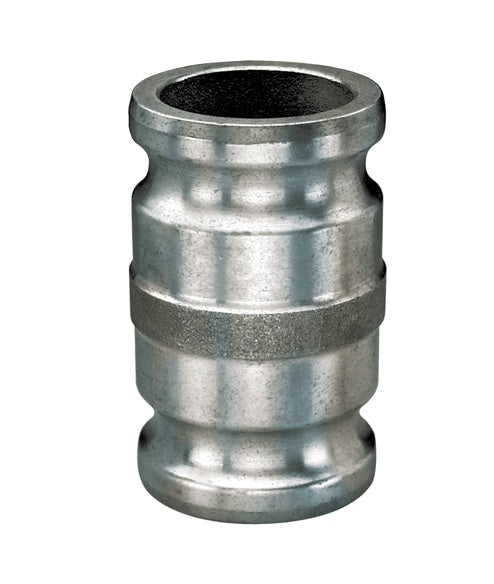

SA-SS1520 by Kuriyama | SA-SS Series | Part AA | Cam & Groove Spool Adapter | 1-1/2" Adapter x 2" Adapter | 316 Stainless Steel

SA-SS1520 by Kuriyama | SA-SS Series | Part AA | Cam & Groove Spool Adapter | 1-1/2" Adapter x 2" Adapter | 316 Stainless Steel

Save $14.92 Save $14.92
$74.95
$74.95 - $74.95
$74.95
$60.03
$60.03 - $60.03
$60.03

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Spool Adapter - 316 Stainless Steel

Specifications for Variant SKU: SA-SS1520 Kuriyama
Series: SA-SS Series
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 1-1/2in Male Cam & Groove, 2in Male Cam & Groove
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
Part Number Male Adapter Size
(in)		 Male Adapter Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SA-SS150 1-1/2" 1-1/2" 250 PSI A666/316 1.76 lbs
SA-SS1520 1-1/2" 2" 250 PSI A666/316 2.10 lbs
SA-SS200 2" 2" 250 PSI A666/316 2.48 lbs
SA-SS2030 2" 3" 150 PSI A666/316 3.14 lbs
SA-SS300 3" 3" 150 PSI A666/316 4.61 lbs
SA-SS3040 3" 4" 150 PSI A666/316 5.28 lbs
SA-SS400 4" 4" 150 PSI A666/316 7.28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
