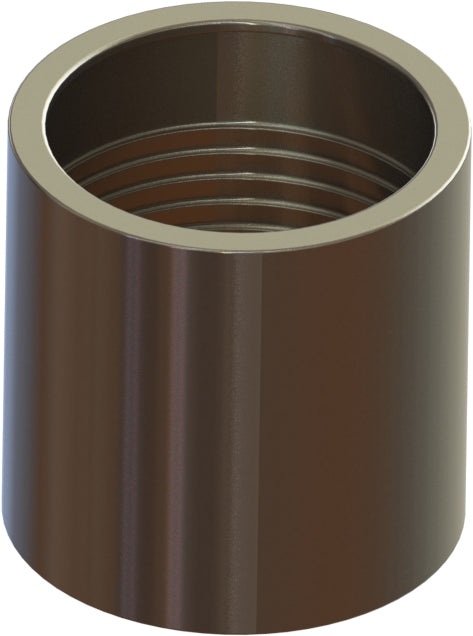

SAN150204 by Campbell Fittings | 3A Sanitary Ferrule | 1-1/2" Hose Size | 2-4/64" Ferrule I.D. | Straight | 304 Stainless Steel

SAN150204 by Campbell Fittings | 3A Sanitary Ferrule | 1-1/2" Hose Size | 2-4/64" Ferrule I.D. | Straight | 304 Stainless Steel

Save $12.35 Save $12.35
$56.40
$56.40 - $56.40
$56.40
$44.05
$44.05 - $44.05
$44.05

by Campbell
3A Sanitary Ferrules:Sanitary Ferrules

Specifications for Variant SKU: SAN150204 Campbell Fittings
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Features and Benefits:
  • Campbell Crimpnology™ offers hose assembly systems for food grade hose applications.
  • Specially designed shank & ferrule lengths are matched for hose tube and cover protection.
  • Dedicated silicone bumper seat area on crimp hose fittings.
  • All products listed as 3A components are certified to meet 32 Ra minimum polish and all other 3A criteria under 3A RPSCQC.
  • Crimp specifications are provided for all hoses for proven performance (3A crimp process exception).
Part Number Hose Size Ferrule I.D.
SAN100132 1" 1-32/64"
SAN100138 1" 1-38/64"
SAN100144 1" 1-44/64"
SAN100150 1" 1-50/64"
SAN150204 1-1/2" 2-4/64"
SAN150210 1-1/2" 2-10/64"
SAN150216 1-1/2" 2-16/64"
SAN150220 1-1/2" 2-20/64"
SAN200240 2" 2-40/64"
SAN200244 2" 2-44/64"
SAN200250 2" 2-50/64"
SAN200256 2" 2-56/64"
SAN250312 2-1/2" 3-12/64"
SAN250318 2-1/2" 3-18/64"
SAN250324 2-1/2" 3-24/64"
SAN300340 3" 3-40/64"
SAN300348 3" 3-48/64"
SAN300352 3" 3-52/64"
SAN300360 3" 3-60/64"
SAN300400 3" 4"
SAN400452 4" 4-52/64"
SAN400506 4" 5-6/64"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
