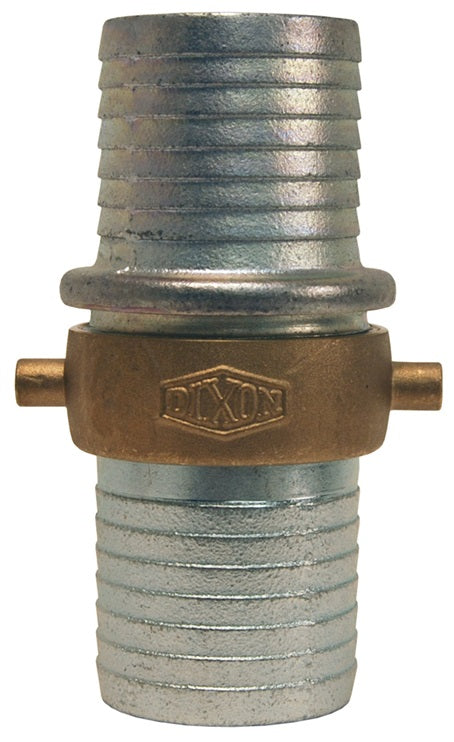

SB78 by Dixon Valve | King Short Shank Suction Hose Coupling | Complete Coupling | 2" Male NPSM x 2" Female NPSM | Plated Iron Shank | Brass Nut

Save $3.29

$38.78

$38.78 - $38.78

$38.78

$35.49

$35.49 - $35.49

$35.49

Dixon Valve
King Short Shank Suction Hose Coupling | Complete Coupling Set | Male NPSM x Female NPSM

For suction or discharge of water.

Quantity

Specifications for Variant SKU: SB78 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Male NPSM, 2in Male NPSM, 2in Hose Barb, Some Ends Match
Material(s):	Plated Iron, Brass
Seal Material(s):	Rubber
Special Properties:	Short

Features:
Complete couplings supplied with rubber gaskets.

Complete Coupling

Plated Iron Shank & Nut Complete Part Number	Size
SB33*	1"
SB48	1-1/4"
SB63	1-1/2"
SB78	2"
SB93	2-1/2"
SB111	3"
SB123	4"
SB183	6"

Female Fitting

Plated Iron Shank & Nut Female Part Number	Size
SB12*	1"
SB17	1-1/4"
SB22	1-1/2"
SB27	2"
SB32	2-1/2"
SB38	3"
SB42	4"
SB62	6"

Male Fitting

Plated Iron Male Part Number	Size
S10	1"
S15	1-1/4"
S20	1-1/2"
S25	2"
S30	2-1/2"
S36	3"
S40	4"

* 1" fittings have a hex nut design.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
