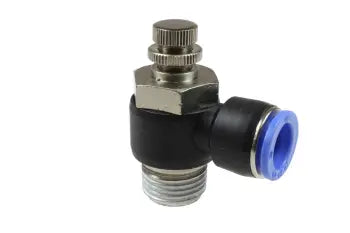

SC69041032 by Coilhose | Econolock Speed Control | 1/4" Tube OD | 10/32" Male UNF | 90° Elbow | Nickel-Plated Brass

Save $9.50

$23.75

$23.75 - $23.75

$23.75

$14.25

$14.25 - $14.25

$14.25

Coilhose Pneumatics - Fittings - Econolock Speed Control Elbow

Quantity

Specifications for Variant SKU: SC69041032 Coilhose
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass, Composite

Overview:
Coilhose's 90° Speed Controls are used to control the speed of pneumatic devices, such as air cylinders. These "free flow in / metered flow out" controls are adjustable via a knurled knob and feature a locking nut to retain the setting. Ideal for use directly on pneumatic actuators. Inlet ports available in 10-32 to 3/8".
Features:
Space-saving design is ideal for tight spaces. Composite body swivels a full 360° for easy installation. Knurled adjustment knob, knurled locking nut, NPT connection, and collet are all nickel-plated brass for superior corrosion resistance and a "dressed" appearance. Thread sealant on the NPT connection ensures a secure seal.

Temperature Range:	0° F to 140° F	Max. Working Pressure:	145 PSI

Model	Tube O.D.	Male NPT
SC692502	5/32"	1/8" Male NPT
SC692504	5/32"	1/4" Male NPT
SC69251032	5/32"	10/32" UNF
SC690402	1/4"	1/8" Male NPT
SC690404	1/4"	1/4" Male NPT
SC69041032	1/4"	10/32" UNF
SC690406	1/4"	3/8" Male NPT
SC690504	5/16"	1/4" Male NPT
SC690506	5/16"	3/8" Male NPT
SC690604	3/8"	1/4" Male NPT
SC690606	3/8"	3/8" Male NPT
SC690608	3/8"	1/2" Male NPT
SC690808	1/2"	1/2" Male NPT
