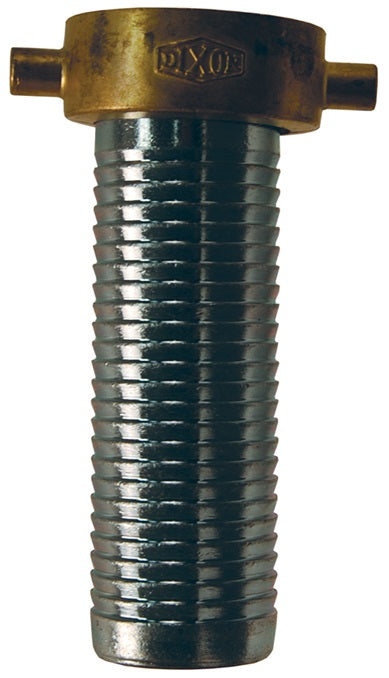

SD30 by Dixon Valve | Super King Long Shank Hose Coupling | Female Fitting | 2-1/2" Female NPSM x 2-1/2" Hose ID | Plated Steel Shank | Brass Pin Lug Nut

Save $5.53

$65.62

$65.62 - $65.62

$65.62

$60.09

$60.09 - $60.09

$60.09

Dixon Valve
Super King Long Shank Hose Coupling | Female Fitting | Female NPSM x Hose Barb

For liquid transfer where steel and stainless are preferred.

Quantity

Specifications for Variant SKU: SD30 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Hose Barb, 2-1/2in Female NPSM
Material(s):	Plated Steel, Brass
Seal Material(s):	Leather
Special Properties:	Long

Features:
Will accept 3 band clamps. Pin lug nut.

Plated Steel Shank with Brass Pin Lug Nut Part Number*	Plated Steel Shank with Iron Pin Lug Nut Part Number*	316 Stainless Shank with Iron Pin Lug Nut Part Number*	316 Stainless Shank with Stainless Hex Nut Part Number**	Size	Shank Length
SD15	SDMP15	-	-	1-1/4"	4-1/8"
SD20	SDMP20	-	RSHR20	1-1/2"	4-1/8"
SD25	SDMP25	RSDM25	RSDR25	2"	5"
SD30	SDMP30	-	-	2-1/2"	5"
SD35	SDMP35	RSDM35	-	3"	5"
SD40	SDMP40	-	-	4"	5"

* KLW leather gaskets standard
** PTFE gaskets standard
