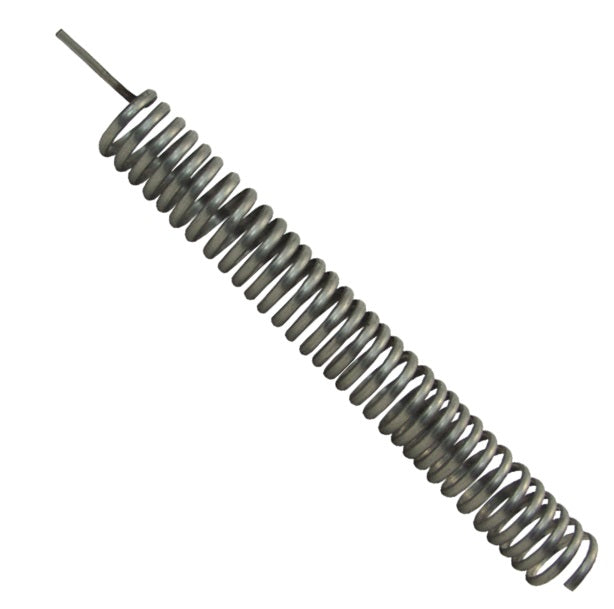

SEGC1-2.00-16 by Dixon Valve | Spring Guard | With Tang | 2" Guard ID | 16" Overall Length | Galvanized Steel

Save $18.00

$45.00

$45.00 - $45.00

$45.00

$27.00

$27.00 - $27.00

$27.00

Dixon Valve & Coupling
Maintenance and Repair | Spring Guard

Protects hose against the effects of flexing at its most vulnerable point - immediately behind the coupling.

Specifications for Variant SKU: SEGC1-2.00-16 Dixon

Features:
Optional end tang allows end guard to be secured under a clamp or ferrule. Wire fits most hose O.D.s from 1/2" to 3-1/4".


Galvanized Steel Part Number	304 Stainless Steel Part Number	Guard ID	Wire Gauge	Overall Length	Tang Length	Approx. Number of Coils/ft
SEGC1-0.75-12	SEGS1-0.75-12	3/4"	0.175	12"	1"	33
SEGC1-1.00-12	SEGS1-1.00-12	1"	0.175	12"	1"	33
SEGC1-1.25-14	SEGS1-1.25-14	1-1/4"	0.175	14"	2"	39
SEGC1-1.50-14	SEGS1-1.50-14	1-1/2"	0.175	14"	2"	39
SEGC1-1.75-16	SEGS1-1.75-16	1-3/4"	0.175	16"	2"	44
SEGC1-2.00-16	SEGS1-2.00-16	2"	0.280	16"	2"	44
SEGC1-2.50-18	SEGS1-2.50-18	2-1/2"	0.280	18"	2"	50
SEGC1-3.00-18	SEGS1-3.00-18	3"	0.280	18"	2"	50


Galvanized Steel Part Number	304 Stainless Steel Part Number	Guard ID	Wire Gauge	Overall Length	Approx. Number of Coils/ft
SEGC0-0.75-12	SEGS0-0.75-12	3/4"	0.175	12"	33
SEGC0-1.00-12	SEGS0-1.00-12	1"	0.175	12"	33
SEGC0-1.25-14	SEGS0-1.25-14	1-1/4"	0.175	14"	39
SEGC0-1.50-14	SEGS0-1.50-14	1-1/2"	0.175	14"	39
SEGC0-1.75-16	SEGS0-1.75-16	1-3/4"	0.175	16"	44
SEGC0-2.00-16	SEGS0-2.00-16	2"	0.280	16"	44
SEGC0-2.50-18	SEGS0-2.50-18	2-1/2"	0.280	18"	50
-	SEGS0-3.00-18	3"	0.280	18"	50
