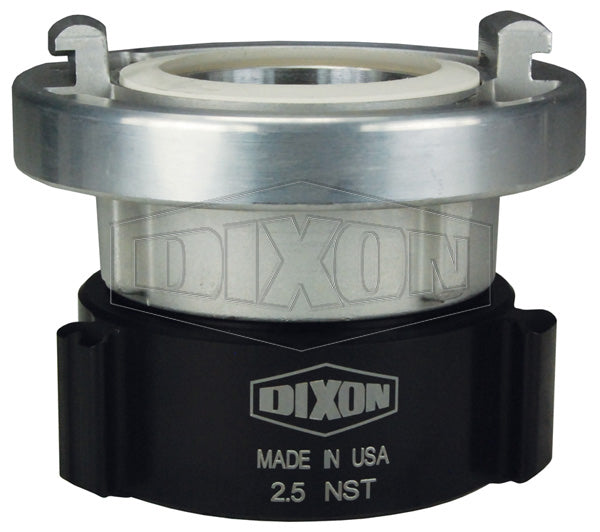

SFSA4040F Dixon Aluminum 4" Storz x 4" Female NST(NH) Swivel Adapter - Old Part #: SZSF4040F

SFSA4040F Dixon Aluminum 4" Storz x 4" Female NST(NH) Swivel Adapter - Old Part #: SZSF4040F

Save $22.63 Save $22.63
$276.00
$276.00 - $276.00
$276.00
$253.37
$253.37 - $253.37
$253.37

Dixon Fire Fittings
Adapters - Storz x Female NST(NH) Swivel - Forged Aluminum

  • Rocker Lug.
  • Machined from forged 6061- T6 aluminum.
  • Hardcoat anodized components per MIL-A-8625 Type III Class 1.
  • Buna-N gaskets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SFSA4040F Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Storz, 4in Female NST
Material(s): Aluminum
Part Number Storz Size Female NST(NH) Swivel Thread Working Pressure Old Part # Weight
(Lbs.)
SFSA2525F 2-1/2" 2-1/2" 150 PSI - 1.6680
SFSA3025F 3" 2-1/2" 150 PSI - 1.9600
SFSA4025F 4" 2-1/2" 150 PSI SZSF4025F 3.1330
SFSA4030F 4" 3" 150 PSI - 3.4550
SFSA4040F 4" 4" 150 PSI SZSF4040F 4.5630
SFSA4045F 4" 4-1/2" 150 PSI SZSF4045F 4.6000
SFSA4060F 4" 6" 150 PSI - 5.9850
SFSA5025F 5" 2-1/2" 150 PSI SZSF5025F 5.6500
SFSA5040F 5" 4" 150 PSI SZSF5040F 6.0600
SFSA5045F 5" 4-1/2" 150 PSI SZSF5045F 5.5100
SFSA5060F 5" 6" 150 PSI - 7.4050
SFSA6060F 6" 6" 150 PSI - 8.7590
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
