SHD2M1 by Dixon Valve | Pneumatic Quick Disconnect Coupling | SHD-Series | 1/8" Male NPT x 1/4" Twist-Lock Interchange | Plug | Steel

$2.49 - $2.49

$2.49

$2.61

$2.61 - $2.61

$2.61

Dixon Valve & Coupling

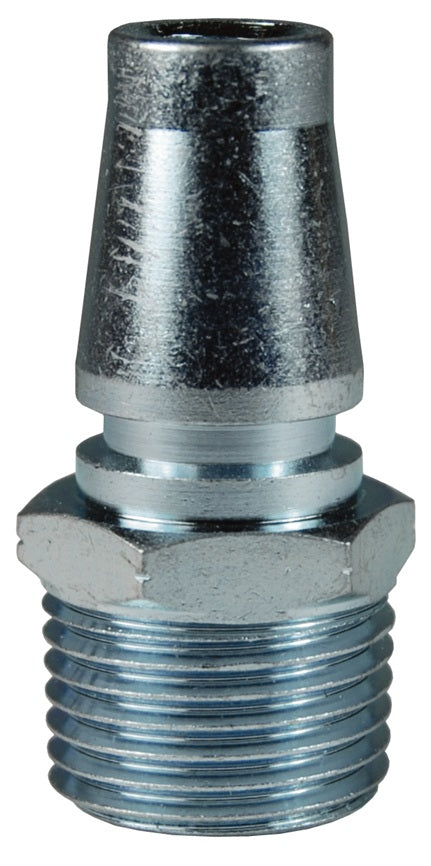

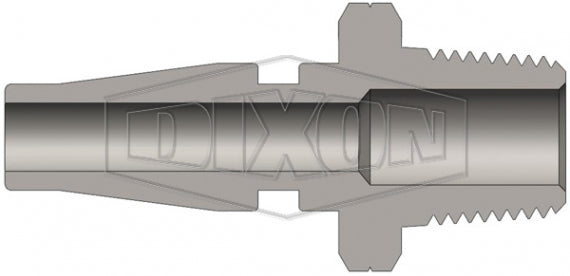

Pneumatic Coupling: SHD-Series Twist-Lock Interchange Plug (Male Threads)

Quantity

Specifications for Variant SKU: SHD2M1 Dixon
Series:	SHD-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Schrader QD Interchange, 1/8in Male NPTF
Material(s):	Steel

Compatibility & Interchange:	Schrader Twist-Lock Interchange Parker Twist-Lock, Tomco Series-TL, Foster SHD
Construction:	Machined components are manufactured using solid bar stock. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

SHD-Series \| Twist-Lock Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Operating Pressure	Burst Pressure
SHD2M1	Plug/Male	1/4"	1/8" - 27 Male NPT	Steel	1.54" (39.1mm)	0.79" (20.1mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
SHD2M2	Plug/Male	1/4"	1/4" - 18 Male NPT	Steel	1.72" (43.7mm)	0.79" (20.1mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
SHD4M3	Plug/Male	1/2"	3/8" - 18 Male NPT	Steel	1.81" (46.0mm)	1.01" (25.7mm)	7/8"	300 PSI (20 bar)	13400 PSI (924 bar)
SHD4M4	Plug/Male	1/2"	1/2" - 14 Male NPT	Steel	1.87" (47.5mm)	1.01" (25.7mm)	7/8"	300 PSI (20 bar)	13400 PSI (924 bar)

SHD-Series \| Twist-Lock Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2SHDM2	Socket/Female	1/4"	1/4" - 18 Male NPT	Aluminium	2.22" (56.4mm)	1.12" (28.4mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
2SHDM3	Socket/Female	1/4"	3/8" - 18 Male NPT	Aluminium	2.28" (57.9mm)	1.12" (28.4mm)	11/16"	300 PSI (20 bar)	6500 PSI (448 bar)
4SHDM3	Socket/Female	1/2"	3/8" - 18 Male NPT	Aluminium	2.55" (64.8mm)	1.50" (38.1mm)	1-1/8"	300 PSI (20 bar)	13400 PSI (924 bar)
4SHDM4	Socket/Female	1/2"	1/2" - 14 Male NPT	Aluminium	2.61" (66.3mm)	1.50" (38.1mm)	1-1/8"	300 PSI (20 bar)	13400 PSI (924 bar)
