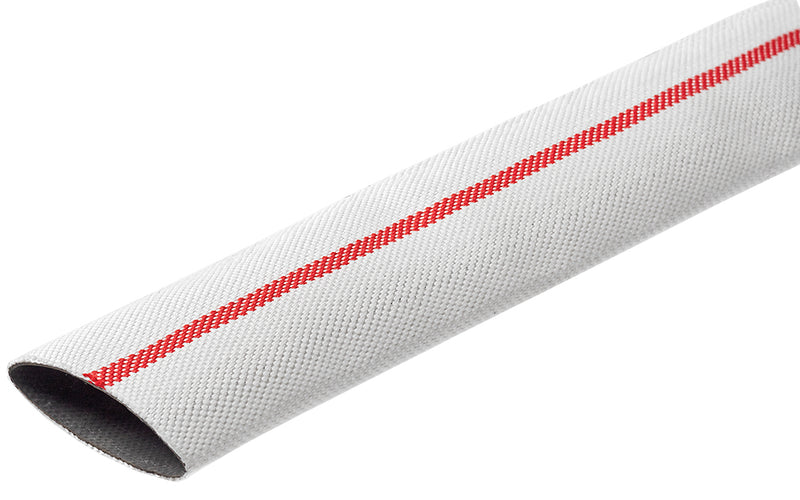

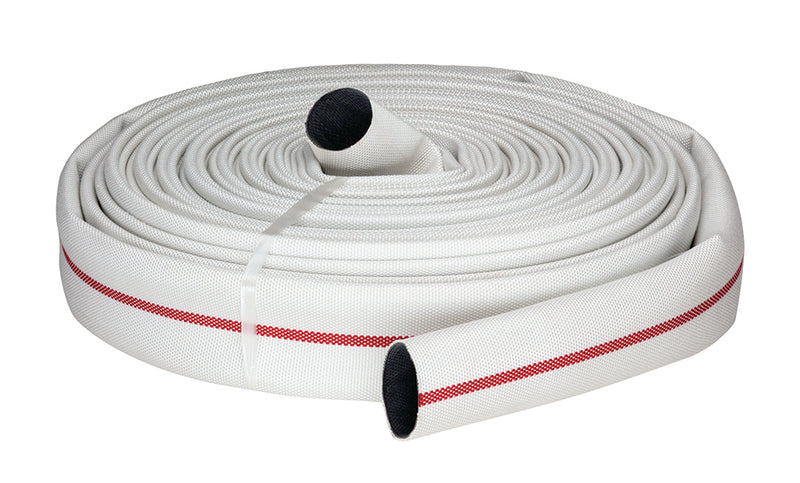

SJMD150X50 by Kuriyama | SJMD Series | Single Jacket Contractor Grade Layflat Hose | 1-1/2" Size | 1.614" Hose ID | 50ft Length
SJMD150X50 by Kuriyama | SJMD Series | Single Jacket Contractor Grade Layflat Hose | 1-1/2" Size | 1.614" Hose ID | 50ft Length
SJMD150X50 by Kuriyama | SJMD Series | Single Jacket Contractor Grade Layflat Hose | 1-1/2" Size | 1.614" Hose ID | 50ft Length

SJMD150X50 by Kuriyama | SJMD Series | Single Jacket Contractor Grade Layflat Hose | 1-1/2" Size | 1.614" Hose ID | 50ft Length

Save $48.35 Save $48.35
$114.05
$114.05 - $114.05
$114.05
$65.70
$65.70 - $65.70
$65.70

Kuriyama
SJMD Series | Single Jacket Contractor Grade Layflat Hose

Ideal for construction and industrial use.

Suited for pump discharge, plant clean-up, and washdown applications on ships and in factories.

Package Quantity: 50 Foot

Specifications for Variant SKU: SJMD150X50 Kuriyama | 50 |
Series: SJMD Series
Hose Color(s): White/Off-White
Internal Diameter: 1.614in
Tubing Construction: Natural Rubber
Cover Construction: Polyester Textile Braid

SPECIFICATIONS

Applications: Construction pumps.
Plant clean-up.
Pump water discharge.
Wash down - ships/factories.
Construction: Single or double jacket with 100% polyester yarn. Water and mildew resistant cover, will not rot, even if the hose is stored wet.
Service Temperature Range: -25°F (-31°C) to +185°F (+85°C)
Other Features:
  • Versatile Natural Rubber Tube - Exhibits a good combination of strength and extreme flexibility for ease-of-use.
  • Wide Service Temperature Range - Hose may be used in a wide range of service temperature ranges from -25°F to +185°F.
  • Double and Single Jacket Options - Available with a double jacket for additional external abrasion resistance.
  • Identification Stripe - Red stripe indicates single jacket version, blue stripe indicates double jacket version.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Storage/Shipping Carton - Hoses are individually packaged in cartons for ease of handling and shipping.
Part Number
50ft		 Part Number
100ft		 Size Hose ID Working
Pressure
(PSI)		 Burst
Pressure		 Coupling
Bowl Size
(in) (mm) (in) (mm) at 68°F at 68°F (in)
SJMD150X50 SJMD150X100 1-1/2" 38.1mm 1.614" 41.0mm 150 PSI 450 PSI 1-11/16"
SJMD200X50 SJMD200X100 2" 50.8mm 2.126" 54.0mm 150 PSI 450 PSI 2-1/4"
SJMD250X50 SJMD250X100 2-1/2" 63.5mm 2.638" 67.0mm 150 PSI 450 PSI 2-3/4"
SJMD300X50 SJMD300X100 3" 76.2mm 3.150" 80.0mm 150 PSI 450 PSI 3-1/4
SJMD400X50 SJMD400X100 4" 101.6mm 4.055" 103.0mm 150 PSI 450 PSI 4-9/32
- DJMD150X100 1-1/2" 38.1mm 1.575" 40.0mm 200 PSI 600 PSI 1-13/16
- DJMD250X100 2-1/2" 63.5mm 2.598" 66.0mm 200 PSI 600 PSI 2-13/16
