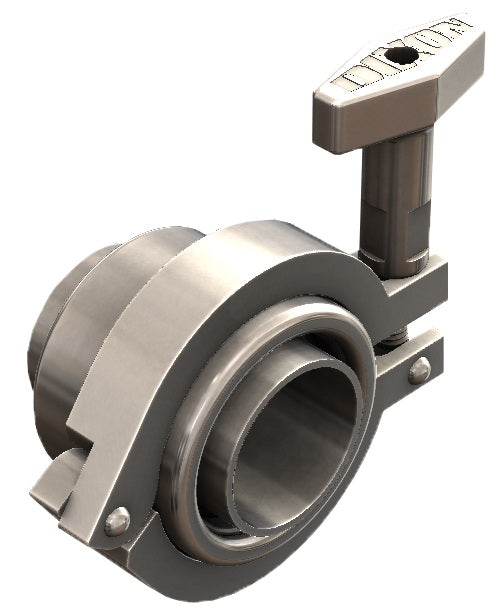

SJSS100SBB120 Dixon Valve SJSS Series Sanitary Swivel - 1" - Style 20 - Weld Ends - Silicone - 316L Stainless Steel

SJSS100SBB120 Dixon Valve SJSS Series Sanitary Swivel - 1" - Style 20 - Weld Ends - Silicone - 316L Stainless Steel

Save $243.99 Save $243.99
$609.98
$609.98 - $609.98
$609.98
$365.99
$365.99 - $365.99
$365.99

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 20 - Weld Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS100SBB120 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Dimensions Weight Repair Kit
Part Number
SJSS100SBB120 1" 500 PSI @ 70°F
300 PSI @ 250°F		 SJSS100SBB120.pdf 1.1707 SJSS-REPAR-S100
SJSS150SBB120 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 SJSS150SBB120.pdf 1.5565 SJSS-REPAR-S150
SJSS200SBB120 2" 400 PSI @ 70°F
200 PSI @ 250°F		 SJSS200SBB120.pdf 1.9246 SJSS-REPAR-S200
SJSS250SBB120 2-1/2" 400 PSI @ 70°F
200 PSI @ 250°F		 SJSS250SBB120.pdf 2.6566 SJSS-REPAR-S250
SJSS300SBB120 3" 350 PSI @ 70°F
175 PSI @ 250°F		 SJSS300SBB120.pdf 4.1138 SJSS-REPAR-S300
SJSS400SBB120 4" - - - SJSS-REPAR-S400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
