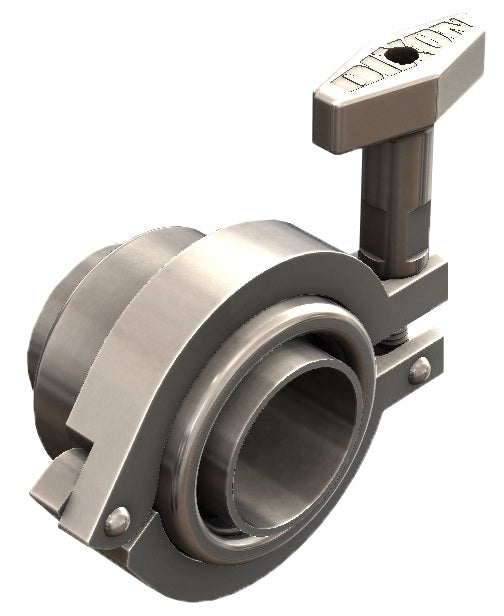

SJSS150EBB120 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 20 - Weld Ends - EPDM - 316L Stainless Steel

SJSS150EBB120 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 20 - Weld Ends - EPDM - 316L Stainless Steel

Save $289.45 Save $289.45
$723.62
$723.62 - $723.62
$723.62
$434.17
$434.17 - $434.17
$434.17

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 20 - Weld Ends - EPDM - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS150EBB120 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Construction:
  • 316L Stainless Steel
  • PTFE with EPDM seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Dimensions Repair Kit
Part Number
SJSS100EBB120 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.1684 SJSS100EBB120.pdf SJSS-REPAR-E100
SJSS150EBB120 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 1.5785 SJSS150EBB120.pdf SJSS-REPAR-E150
SJSS200EBB120 2" 450 PSI @ 70°F
250 PSI @ 250°F		 1.9246 SJSS200EBB120.pdf SJSS-REPAR-E200
SJSS250EBB120 2-1/2" 400 PSI @ 70°F
200 PSI @ 250°F		 2.6522 SJSS250EBB120.pdf SJSS-REPAR-E250
SJSS300EBB120 3" 350 PSI @ 70°F
175 PSI @ 250°F		 4.1116 SJSS300EBB120.pdf SJSS-REPAR-E300
SJSS400EBB120 4" - - - SJSS-REPAR-E400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
